Pontiac Firebird & Trans Am, 1990-93
Convertible Top and Convertible Top Parts
- Original Configuration: One piece top with plastic rear window sealed in.
- Original Factory Material: Haartz pinpoint vinyl and Haartz Stayfast Canvas, in black.
- All seams are doubly electronically welded and sewn for added reinforcement. Convertible top fabrics are mildew & mold resistant, and UV treated for color fastness. Plastic windows are DOT rated heavy 40-gauge thick vinyl.
- Installation: Professional installation is suggested. A handy and meticulous person may consider DIY installation. This comprises use of a stapling gun and contact cement. We offer an installation manual with our tops. There is no sewing involved. To locate a professional installer please enter "automobile upholstery shops near me" in your browser search bar.
- Shop with confidence: 6 year manufacturer warranty.
- Hydraulic Components: Hydraulic cylinders, motor pumps and hose sets all available and in stock.
THE TOPS ON THIS PAGE HAVE THE FOLLOWING MEASUREMENTS:
IMPORTANT--PLEASE MEASURE AND CHECK AS GM MADE
DIFFERENT PONTIAC TOPS DURING THIS PERIOD
Important InformationOriginal Factory Color(s): 848SF Black
based on original patterns, for perfect fit.
We therefore ask that you refer to the diagram
of the top that is shown above,
and provide us with the following measurements.
A=WIDTH OF WINDOW BASE. IT SHOULD BE 45 to 45 1/2 INCHES.
B=BINDING TO BINDING DISTANCE. IT SHOULD BE 51 TO 51 1/2 INCHES.
(MEASURED AN INCH IN FRONT OF THE CURVE AT THE REAR DOOR GLASS.
C=THE DISTANCE FROM THE UNDER WINDOW STITCHING TO LOWER BINDING. IT SHOULD BE 3/4 INCH.
Significant differences noted?? Then please check other Camaro and Pontiac tops.
Fabrics: The original topping was either black pinpoint vinyl or black stayfast canvas. We offer tops in both fabrics. We are also offering alternative color tops, which are non-original.
Rear Window: As originally, these tops are made with the plastic window sewn in. This is one of the earlier GM tops to have the rear window integrated with the rest of the top. This makes the installation easier than for classic two piece tops.
Do It Yourself Installation: The summary of our two piece top installation manual can be read via the link below. In these Camaro tops the rear window section has been combined with the main top, making installation even easier. You can read the general steps in our manual link below to decide upon self installation. This work requires stapling (or tacking) and the alignment of fabric with frame sections for contact cement work. There is no sewing.
Headliner: The headliner is the interior roof covering. It is possible to re-use the old headliner in a new top installation if it is not damaged. The headliner is offered with "accessories."
Hold Down Cables: Hold down cables are threaded (one cable on each side of the top) through hems in the top. They attach the top to the frame front and back, above the side windows. New cables are recommended with each top. Cables are not visible after complete installation.
Tacking Strips: We offer replacement tacking strips which are embedded in the top frame front and rear bows. They receive the staples that hold the top to these frame cross bows.

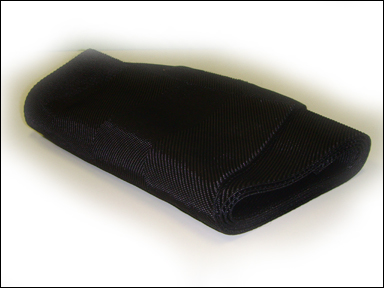

Webbing: The webbing, or "stay pads" build out the top. Often old pads last through two tops and can be kept on the car under a second top.
Almost all manufacturers use Haartz fabrics. They may specify "heaviest weight" or "original replacement" in ways that seem reassuring. But they do not really tell the whole story. Please bear in mind that two things dominate, by far, the quality issue: (a) the manufacturing quality control in the factory that makes the top and (b) the care and thoroughness of the installation. There is a trade-off in weight: heavier is better for resisting tear through, but lighter is better for flexibility and abrasion from within that may arise from movement. Almost all our tops are a flexible medium density (36 oz.) fabric. Heavier is not better in most cases. Where it is, because of the top design, we will say so and the top will be made of the heavier vinyl.
- Sonnenland® is a German-made 3-ply topping made up of an acrylic twill-weave facing, a rubber inner-layer, and a polyester "dobby backing." The dobby backing is a knit-like weave original to many high-end foreign cars. Customers who value originality over cost often pay top dollar for Sonnenland, just to have that authentic "dobby backing," seen only when you look up at the roof of your convertible top from inside your car. Sonnenland canvas is a top-of-the-line material original to various Audi, BMW, and Jaguar convertibles, among others. Sonnenland Canvas can vary in terms of surface weave and/or weight for acoustic performance, but all Sonnenland Canvas promises elegance and long-lasting durability.
- Twillfast®, also called Sonnendeck Canvas, is an American-made canvas - a cost-effective substitute for Sonnenland. Twillfast is usually a 3-ply topping (though some versions are 5-ply) with Polyester and/or Polyester/cotton backings. This material, original to certain Camaro, BMW, Mustang, and VW Beetle convertibles, among others, varies in terms of surface weave and/or weight for acoustic performance. Twillfast Canvas is identical to Sonnenland Canvas - elegant and durable - only it's less expensive. This is a top-notch convertible top material, one we often recommend to savvy customers who like a good buy and a quality product.
- Stayfast Canvas is an elegant, durable canvas original to cars like the Mazda Miata and the Nissan 370Z. Stayfast is commonly used in replacement convertible tops. Stayfast canvas has an acrylic square weave facing, a rubber inner-layer, and a cotton backing. As with other canvases, the rubber core gives the fabric long-lasting durability. Stayfast canvas is a sleek, beautiful canvas, usually less expensive than Twillfast, but it does not have the dobby backing offered in Sonnenland and Twillfast (Sonnendeck). Stayfast is a popular upgrade to vinyl convertible tops, and as with any canvas, is richer looking and has a higher wear rating than convertible tops made of vinyl.
- Haartz Pinpoint Vinyl is the most popular fabric. This vinyl design is original to most American cars from the fifties to the nineties. Pinpoint refers to the little dots or pips that you see if you look closely at the vinyl surface. European cars, such as the old Beetles and others also used pinpoint vinyl as the topping fabric.
- Chrysler Sailcloth is featured on many late LeBarons, Sebrings, certain Mustangs and other cars. It is structurally (wear quality) equivalent to the Haartz Pinpoint but has a different surface grain. The grain was designed to imitate the look of canvas. As you can see from the scan of this fabric, it is an exceptionally rich looking material. It is sometimes chosen for replacing convertible tops that originally featured pinpoint vinyl.
- Cabrio Grain is also structurally equivalent to the pinpoint. It has a pigskin outer grain vinyl as original to Volkswagen Cabriolets from 1984 onward and to Mazda Miatas and Mercury Capris.
- A5S German Canvas (Robbins) The 100% Acrylic Twill Weave Surface Cloth receives a special flame singing treatment to remove the fabric knap; and is laminated to Black 100% Polyester Dobby backing.
This is the original topping for Porsche Boxster and Cabrio convertible tops. 59 inches (150 cm) wide, made in Germany.
- British Bison Vinyl is the most popular British roadster convertible top material. It is American made Haartz leather grain vinyl and is an imitation of the British Everflex vinyl top fabric. The British Bison Vinyl convertible top fabric is often referred to as 'crush grain.'
- British Everflex Vinyl We are now pleased to offer British Everflex Vinyl for classic English tops. This is the original material used on British convertibles including Jaguar, Rolls Royce and many others. Imported from England, British Everflex vinyl is a supple vinyl with a rich appearance and is more durable than other vinyls. A good, less expensive alternative is Colonial grain vinyl. Colonial has the same texture but is less durable.
- HV Denim (also called Twill Weave Vinyl) is heavy duty sport material composed of a distinctive twill grain PVC outer layer and a polyester/cotton blend inside lining fabric.
- Trilogy Acoustic Vinyl A heavyweight vinyl that is often used on SUVs like Jeep, because the two-ply composite has the capacity to reduce noise by about 20 percent compared to standard vinyls like Sailcloth. The vinyl material is durable, promises long-lasting wear-and-tear, and resembles the sleek twill cloth commonly found on luxury convertible cars.
- Haartz Twillfast RPC This American-made canvas has a twill weave pattern and resembles German-made Sonnenland canvas. It is a great all-purpose canvas and, according to Haartz, is used on 99 percent of convertibles. It is stronger and more durable than Stayfast Canvas and offers more sound protection. Haartz rates Twillfast RPC as a mid-level acoustic product, compared to the low-level sound reduction offered on other top materials like Stayfast
Parts in this category (Pontiac Firebird & Trans Am) fit cars for years: 1990, 1991, 1992 and 1993.
