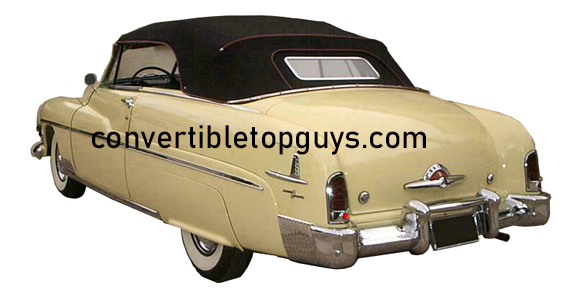

Mercury 76 & M76, 1949-51
Convertible Top and Convertible Top Parts

Mercury 76 and M76 Convertible Top Information
  • Quality: Made to original specs, 100% fit guarantee.
  • Original Configuration: Two piece top, top section and window section integrate upon installation. Molding over rear window and chrome tips supplied. Extra fabric for header bow seal included.
  • All seams are doubly electronically welded and sewn for added reinforcement. Convertible top fabrics are mildew & mold resistant, and UV treated for color fastness. Plastic windows are DOT rated heavy 40-gauge thick vinyl.
  • Original Fabrics: Haartz Pinpoint Vinyl in black and Ford White. Haartz Stayfast Canvas in black.and tan (with black or tan inner lining) and also light neutral with tan lining.
  • Windows: We offer tops with plastic window and with "blank curtain" (which is for those with their own glass window assembly for installation.) The zipper, as original, is wrap-around ('horseshoe' type.)
       Rear window with blank curtain
  • Installation: Professional installation is suggested. A handy and meticulous person may consider DIY installation. This comprises use of a stapling gun and contact cement (as outlined in the manual summary in the link below.) There is no sewing involved. To locate a professional installer please enter "automobile upholstery shops near me" in your browser search bar.
  • Tack Strips: Check your bow channel dimensions. The plastic strips (TS) usually work. We list all other dimenson strips and you can specify in checkout message if yours differ.
  • Shop with confidence: 3 year manufacturer warranty.
  • Hydraulic Components: Hydraulic cylinders, motor pumps and hose sets all available and in stock.



Preview our Convertible Top Installation Guide




Convertible Tops and Packages

Convertible Tops and Packages

A.) Haartz Stayfast Canvas Convertible Top
In choice of:
Zippered Plastic rear window
OR
Zippered Blank rear curtain

Installation manual (see below) will be included if requested.
Rear Section:
Color:

As low as:
$976.00
B.) Haartz Pinpoint Vinyl Convertible Top
In choice of:
Zippered Plastic rear window
OR
Zippered Blank rear curtain

Installation manual (see below) will be included if requested.
Rear Section:
Color:

As low as:
$686.00
C.) ADD A GLASS TO ANY BLANK CURTAIN
No need for a frame, this glass is built-in!
Available in two sizes 6" x 21" OR 8" x 25"
Will fold with top without zipping out.
For: 1949-51 Mercury 76 & M76 Convertible Top
SIZE
$419.00
Mercury 76 & M76 convertible tops and parts in this category fit model years: 1949, 1950 and 1951


Installation Supplies

Installation Supplies

75" PADS WITH QUARTER SECTIONS. TAN (FOR USE WITH TAN UNDERSIDE TOPS)
$179.00
Standard Black Top Pad Set, includes Quarter Pads,



   Details...

$179.00
Top Pads with Quarters,Black or Tan Stayfast Canvas



   Details...

Color
View Color
$279.00
Plastic pry tool, great for prying fasteners and seals, pushing seals into retainers, loosening fabric etc
$12.95
Fiberboard Tack Strip, Measures: 1/4" Thick x 13/16" Wide x 62" Long, Expect 2 x 31" sections.
   Details...

$10.95
Fiberboard Tack Strip, Measures: 1/4" Thick x 3/4" Wide x 62" Long, expect 2 x 31" sections.
   Details...

$9.95
Fiberboard Tack Strip, Measures: 1/4" Thick x 5/8" Wide. Expect 2 x 31" sections.
   Details...

$9.49
Fiberboard Tack Strip: 1/4" Thick x 7/16" Wide. Long, Expect 2 x 31" sections.
   Details...

$8.95
Front and Rear Top Frame Bow Tack Strips
(Tacking strips for most top frames. Some may vary, especially pre-60s cars.)

Dimensions: 5/8" X 3/16" and 1/2" X 1/4" (in 6 foot lengths.)
Note: These usually apply. In certain convertible top frames (especially pre-sixties) the cross sections of the header and rear top bows vary. You can measure the top bow channel cross sections and let us know if yours vary from the usual plastic ones. In that case include your tack strip selection in checkout message.
   Details...

$23.95
New Edition!!!
Convertible Top Guys' "How To Remove and Install Classic Two-Part Tops."

This 40-page, extensively illustrated how-to manual walks you through removing and installing any two-part convertible top. The manual applies to almost all American convertibles made before the year 2004, and some foreign cars, too, like Celicas and Saabs. This 8 1/2 x 11 book is designed as both a tutorial for first-time installers and as a step-by-step manual for these convertible tops. Generally, all that is needed and not contained is the "bow height" which is the setting of the rear top frame bow for your convertible. This is available from any top distributor ot can be measured with the old top on the car (as illustrated.)

What skills are required ? (1) The ability to drive staples into bow frame tacking strips (2) The ability to orient fabric sections to the frame and apply with contact cement. (3) A systematic and careful personality ! (There is never any sewing required.)

Note: Very early cars (forties) had wood bows and installers will have to adjust processes for stapling to these bows instead of tacking strips in steel bows as described in manual.

   Details...

$30.95
Arrow T-50 Stainless Staples, 1/4", 300 Count



$4.95
Arrow T-50 Stainless-Steel Staples 3/8", 300 Count



$4.95
Arrow T-50 Stainless-Steel Staples, 3/8", 1000 Count



$13.95
Arrow T-50 Stainless-Steel Staples, 1/4", 1000 Count
$13.95
Trimmer Contact Cement: 4-Oz. Brush Top Can. Strong, Waterproof, Flexible Bond for Vinyl-coated and Vinyl-laminated Fabrics.
$14.95
Trimmer Contact Cement: 8-Oz. Brush Top Can. Strong, Waterproof, Flexible Bond for Vinyl-coated and Vinyl-laminated Fabrics.
$20.95
Plastic pry tool set, 7-piece kit

Great for prying fasteners and seals, pushing seals into retainers, loosening fabric etc.

$34.95


Hydraulics

Hydraulics

"O" Ring Motor Pump Service Kit For Any American Makes

Our O-Ring kit contains the following items:(1) Drive Pin, (1) 1/8" Chrome Ball, (2) 1/4" Chrome Ball, (2) Pump Port O-Ring, (2) Reservoir O-Ring, (1) Reservoir bolt O-Ring, (1) Reservoir plug, (1)Reservoir Plug O-Ring (metal plug only).

$24.95
1950-51 Mercury Convertible Top Hydraulic Hose Set
$109.95

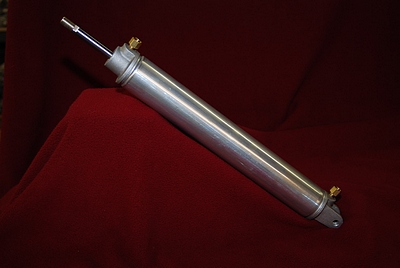

Convertible Top Hydraulic Cylinder, Fits 1949-51 Ford and Mercury Convertibles, Sold Individually
$139.95
Chrome universal 6 volt toggle switch with wiring. Replaces original switch and wiring to connect directly with 6 Volt Motor Pump with no additional relays required. All wires are tagged for easy installation. Includes crimp connectors to attach wiring to motor and nylon tie straps to hide wiring.
$85.95
DOES NOT REPLACE ORIGINAL RELAYS. This wire adapter is used to connect new 6 Volt Motor pump using original switch and wiring. No applicable for cars that originally had hydraulic windows. Includes instructions.
$45.95
Hydraulic System Guide: A well illustrated 10 page, 8 1/2 x 11 guide to the operation, diagnosis, and bleeding of the motor pump and to the motor/pump and cylinder removal and reassembly. Diagnosis includes electrical testing procedures.
$9.95
Set of 4 New Pointed Pump Grommets
$7.95
Top Cylinder Mounting Bolt, One.
With Pin and Bushings
1 5/8" Long, 3/8" Diameter.
$11.95
Top Cylinder Mounting Bolt, One
With Pin and Bushings.
1 1/8" Long, 3/8" in Diameter.
$11.95
Top Cylinder White Nylon Bushing, Each
$2.95
Motor pump reservoir plug, black rubber
$2.39


Boots

Boots

Convertible Top Boot Bag



$49.95
Convertible Top Boot, Attaches as Original - In Original Sierra Vinyl.
Includes 35 Snaps and Snap Installation Tool

Fits 1949-1951 Lincolns (all except Cosmopolitan); 1949-51 Mercury Coupe

View Color
$305.95


Cleaning & Protectant

Cleaning & Protectant

A PACKAGE SPECIAL:
A Combination Pack of RAGGTOPP Brand Canvas Cleaner & Protectant.
  • Plus:
  • Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit.
  • The Natural Horsehair Convertible Top Cleaning Brush
$79.95
A Combination Pack of RAGGTOPP Brand Canvas Cleaner & Protectant

About RAGGTOPP products
$38.95
A PACKAGE SPECIAL:
A Combination Pack of the RAGGTOPP Brand Vinyl Cleaner and Protectant.
  • Plus:
  • Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit.
  • The Natural Horsehair Convertible Top Cleaning Brush
$79.95
A Combination Pack of the RAGGTOPP Brand Vinyl Cleaner and Protectant Together

About RAGGTOPP products
$34.95
Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit

Contains:

  • Bottle Window Cleaner
  • Bottle Window Protectant
  • Sponge, Applicator Pad
  • Microfiber Towel

About RAGGTOPP products
$30.95
Natural Horsehair Convertible Top Cleaning Brush

About Natural Horsehair Brush
$14.95


Top Switch, Relays, Etc.

Top Switch, Relays, Etc.

Top Switch
Activates Raising/Lowering.
Heavy Duty: Rated for 50 amps.
Mount in any under dash hole.
$34.95


Important Information

Original Factory Color(s): Black, Tan and Light Neutral

We can offer a top boot for this convertible.

We strongly recommed one of the modern boot vinyls. This is a leather grained vinyl with a slight elasticity making it perfect for boot usage. Boots are listed, with accessories, below.

Hydraulics:

We now stock hydraulic cylinders, motor-pumps, and hoses for your convertible tops. All are made to OEM specifications. Each can be ordered separately; however, when ordering hydraulic cylinders we recommend replacing both. The chances are that both hydraulic cylinders were manufactured at the same time: if one is on its way out the other may follow. If the top is raised and one hydraulic cylinder is working harder than the other the result over time can lead to a slightly bent convertible top frame. The replacement of both hydraulic cylinders will ensure that the top raises and lowers symmetrically.

Systems for this car take Automatic Transmission Fluid (ATF) and have a 1 year warranty when used with this fluid. Brake fluid should not be used as it voids the warranty. We also offer an installation manual when ordered.

The 12 volt motor-pumps include a mounting bracket with rubber grommets to reduce vibration.

Do-it-yourselfers:   Read a summary of convertible top installation.
CONVERTIBLE TOP FABRICS
Almost all manufacturers use Haartz fabrics. They may specify "heaviest weight" or "original replacement" in ways that seem reassuring. But they do not really tell the whole story. Please bear in mind that two things dominate, by far, the quality issue: (a) the manufacturing quality control in the factory that makes the top and (b) the care and thoroughness of the installation. There is a trade-off in weight: heavier is better for resisting tear through, but lighter is better for flexibility and abrasion from within that may arise from movement. Almost all our tops are a flexible medium density (36 oz.) fabric. Heavier is not better in most cases. Where it is, because of the top design, we will say so and the top will be made of the heavier vinyl.
Warranties outlined here are only applicable for products installed by a professional trim shop or professional upholstery shop. For Convertible Tops, and related products, the manufacturer will void the warranty for any product that is not professionally installed; manufacturer defects are covered by the warranty in such cases. The manufacturer is not responsible for damage due to improper installation.


Parts in this category (Mercury 76 & M76) fit cars for years: 1949, 1950 and 1951.
