Mercury Capri & Australia Ford Capri, 1989-94
Convertible Top and Convertible Top Parts

Mercury Capri Convertible Top Key Features:

  • Original Configuration: One-piece top with plastic rear window electronically welded. Embossing as original around window and along sides.
  • All seams are doubly electronically welded and sewn for added reinforcement. Convertible top fabrics are mildew & mold resistant, and UV treated for color fastness. Plastic windows are DOT rated heavy 40-gauge thick vinyl.
  • Original Factory Material: Cabrio vinyl in black and white.
  • Alternate Materials: Haartz Stayfast Canvas
  • Cables: A horizontal cable and a vertical cable are encased on each side of this top. They secure the top to its framework and are hidden from view once installation is complete.
  • Shop with Confidence: 6 year manufacturer warranty.

If ordering cables, or a top package,
pease measure your cable pocket (shown as ‘A’) as tops differ slightly
according to this measurement. A will be either 23 5/8" or 25 1/2".

Convertible Tops and Packages

Convertible Tops and Packages

A.) 1989-1994 Mercury Capri Convertible Top

Made in Original Cabrio Grain Vinyl, with Plastic Rear Window.
For: 1989-94 Mercury Capri & Australia Ford Capri Convertible Top
Color
View Color
Cable Mesurement
$438.00
B.) DIY Package Special:

1989-1994 Mercury Capri Convertible Top with Rear Window
Made in Original Cabrio Grain Vinyl,

PLUS:
The pair of side hold down cables.
The pair of rear flap hold down cables.
The installation manual.
A can of trimmer contact cement with brush.
For: 1989-94 Mercury Capri & Australia Ford Capri Convertible Top
Color
View Color
Cable Measurement
$538.00
C.) 1989-1994 Mercury Capri Convertible Top

Made In Haartz Stayfast Canvas, with Plastic Rear Window.
For: 1989-94 Mercury Capri & Australia Ford Capri Convertible Top
Color
Stayfast Canvas: Black on Black - #848SF
View Color
Cable Measurement
$595.00
D.) DIY Package Special:

1989-1994 Mercury Capri Convertible Top
Made in Haartz Stayfast Canvas, with Plastic Rear Window.

PLUS:
The pair of side hold down cables.
The pair of rear flap hold down cables.
The installation manual.
A can of trimmer contact cement with brush.
For: 1989-94 Mercury Capri & Australia Ford Capri Convertible Top
Color
Stayfast Canvas: Black on Black - #848SF
View Color
Cable Measurement
$695.00
Mercury Capri & Australia Ford Capri convertible tops and parts in this category fit model years: 1989, 1990, 1991, 1992, 1993 and 1994


Installation Supplies

Installation Supplies


Instruction Booklet: Clear Step by Step Guide to Installing Capri Tops.
8 pages, 8 1/2 x 11.
THIS MANUAL IS INCLUDED IN OUR PACKAGE SPECIALS.
$8.95

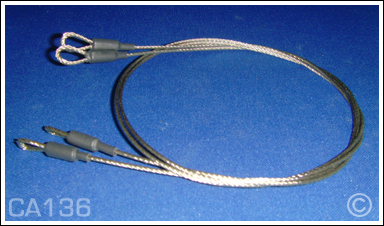

Pair of Horizontal Hold Down Cables, 25 1/2" Length.

American made in the USA (beware of inferior made imports)
   Details...

$18.95
Pair of Horizontal Hold Down Cables. 23 5/8" Length.

American made in the USA (beware of inferior made imports)
   Details...

$18.95

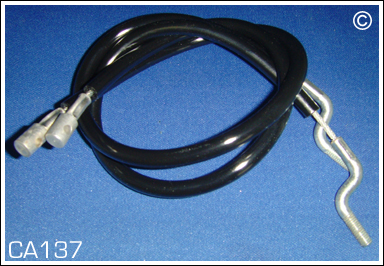

Pair of Rear Flap (Vertical) Hold Down Cables. Will Fit All Capris.

American made in the USA (beware of inferior made imports)
   Details...

$65.95
Plastic pry tool, great for prying fasteners and seals, pushing seals into retainers, loosening fabric etc
$12.95
Trimmer Contact Cement: 8-Oz. Brush Top Can. Strong, Waterproof, Flexible Bond for Vinyl-coated and Vinyl-laminated Fabrics.
$20.95
Arrow T-50 Stainless Staples, 1/4", 300 Count



$4.95
Arrow T-50 Stainless-Steel Staples 3/8", 300 Count



$4.95
Arrow T-50 Stainless-Steel Staples, 3/8", 1000 Count



$13.95
Arrow T-50 Stainless-Steel Staples, 1/4", 1000 Count
$13.95
Trimmer Contact Cement: 4-Oz. Brush Top Can. Strong, Waterproof, Flexible Bond for Vinyl-coated and Vinyl-laminated Fabrics.
$14.95
Plastic pry tool set, 7-piece kit

Great for prying fasteners and seals, pushing seals into retainers, loosening fabric etc.

$34.95


Cleaning & Protectant

Cleaning & Protectant

A PACKAGE SPECIAL:
A Combination Pack of RAGGTOPP Brand Canvas Cleaner & Protectant.
  • Plus:
  • Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit.
  • The Natural Horsehair Convertible Top Cleaning Brush
$79.95
A Combination Pack of RAGGTOPP Brand Canvas Cleaner & Protectant

About RAGGTOPP products
$39.95
A PACKAGE SPECIAL:
A Combination Pack of the RAGGTOPP Brand Vinyl Cleaner and Protectant.
  • Plus:
  • Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit.
  • The Natural Horsehair Convertible Top Cleaning Brush
$79.95
A Combination Pack of the RAGGTOPP Brand Vinyl Cleaner and Protectant Together

About RAGGTOPP products
$38.95
Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit

Contains:

  • Bottle Window Cleaner
  • Bottle Window Protectant
  • Sponge, Applicator Pad
  • Microfiber Towel

About RAGGTOPP products
$32.95
Natural Horsehair Convertible Top Cleaning Brush

About Natural Horsehair Brush
$14.95


Clearance

Clearance

1990-1994 Mercury Capri Seat Covers, Full Set, Front & Rear Seat Upholstery, No Map Pockets, No Front Thigh Cushions, #6504 Titainium Hampton Leatherette Vinyl Non-Perforated Trim with 6504 Titainium Perforated Leatherette Vinyl Inserts

This is Mercury Capri seat upholstery is replacement seat upholstery, not slip-on covers. This style does not feature map pockets or front thigh cushions. If you'd like a style that does, please see the other Capri seat cover offerings on this page.
In Stock! Ships within two business days!
$863.95


Hydraulics

Hydraulics

"O" Ring Motor Pump Service Kit For Any American Makes

Our O-Ring kit contains the following items:(1) Drive Pin, (1) 1/8" Chrome Ball, (2) 1/4" Chrome Ball, (2) Pump Port O-Ring, (2) Reservoir O-Ring, (1) Reservoir bolt O-Ring, (1) Reservoir plug, (1)Reservoir Plug O-Ring (metal plug only).

$24.95
Hydraulic System Guide: A well illustrated 10 page, 8 1/2 x 11 guide to the operation, diagnosis, and bleeding of the motor pump and to the motor/pump and cylinder removal and reassembly. Diagnosis includes electrical testing procedures.
$9.95
Set of 4 New Pointed Pump Grommets
$7.95
Top Cylinder Mounting Bolt, One.
With Pin and Bushings
1 5/8" Long, 3/8" Diameter.
$11.95
Top Cylinder Mounting Bolt, One
With Pin and Bushings.
1 1/8" Long, 3/8" in Diameter.
$11.95
Top Cylinder White Nylon Bushing, Each
$2.95
Motor pump reservoir plug, black rubber
$2.39


Top Switch, Relays, Etc.

Top Switch, Relays, Etc.

Top Switch
Activates Raising/Lowering.
Heavy Duty: Rated for 50 amps.
Mount in any under dash hole.
$34.95


Custom Fit Car Covers

Custom Fit Car Covers

1991-94 Mercury Capri Convertible, Custom Fit Car Cover with 2 Mirror Pockets, 200 Series
$167.95
1991-94 Mercury Capri Convertible, Custom Fit Car Cover with 2 Mirror Pockets, 380 Series
$227.95


Important Information

Original Factory Color(s): Black and Tan

Fabrics:
The dealer original Mercury Capri convertible top fabric was 'Cabrio vinyl' (a pigskin grained convertible top vinyl) on most cars sold. A small percentage were supplied in black Stayfast canvas. We offer both top fabrics as an option for every Capri replacement soft top.

Differences Between Vinyl and Canvas Tops:
Canvas is elegant and has the highest wear rating. This is due to its butyl rubber central core. However the vast majority of our customers select the Cabrio vinyl for this convertible top, especially those considering do-it-yourself installation. The vinyl is easier to keep clean. Its wear rating is about 20% less than that of the canvas.

Top Design:
We never sell "seconds" or any convertible top made withe fabric "seconds." The detailing of our top is as original: the rear window of the top is bonded with an electronic weld and includes the heat sealed detail around the window. The welt cording above the door glass is utilized. As in all premium tops, thread, fabric, window guage, welting and other top variables are of the highest quality.

Installation Manual:
A restorer has produced our guide to do-it-yourself installation of the Mercury Capri convertible top. It is available with purchase of a replacement convertible top or of a convertible top restoration package. Installation requires the use of contact cement, and the careful alignment of fabric with frame. There is removal of hardware from the original convertible top and its replacment in the new top, and the same for the top frame seals. There is no sewing involved in the top's installation.

Hold down cables:
There is a horizontal and a vertical cable encased in the top on each side. These cables secure the top to the framework. Cables are hidden from view after installation.

Proper functioning of the hold down cables is vital for a secure restoration; cables should be replaced with each top.

Checkout Message:
Experienced staff go over every order. Please use the checkout message box for any requests or additional information.

To our Australian customers: If you fill out an order
on line, it will automatically route your information
to our Internatational order person, who will reply with full shipping
information to your address, and a payment request note. Your on line
"order" will not require any payment information, and you may simply abandon
the "order" if you feel the shipment cost is not to your liking.

CONVERTIBLE TOP FABRICS
Almost all manufacturers use Haartz fabrics. They may specify "heaviest weight" or "original replacement" in ways that seem reassuring. But they do not really tell the whole story. Please bear in mind that two things dominate, by far, the quality issue: (a) the manufacturing quality control in the factory that makes the top and (b) the care and thoroughness of the installation. There is a trade-off in weight: heavier is better for resisting tear through, but lighter is better for flexibility and abrasion from within that may arise from movement. Almost all our tops are a flexible medium density (36 oz.) fabric. Heavier is not better in most cases. Where it is, because of the top design, we will say so and the top will be made of the heavier vinyl.
Warranties outlined here are only applicable for products installed by a professional trim shop or professional upholstery shop. For Convertible Tops, and related products, the manufacturer will void the warranty for any product that is not professionally installed; manufacturer defects are covered by the warranty in such cases. The manufacturer is not responsible for damage due to improper installation.


Parts in this category (Mercury Capri & Australia Ford Capri) fit cars for years: 1989, 1990, 1991, 1992, 1993 and 1994.
