Chrysler Crossfire, 2004-2008
Convertible Top and Convertible Top Parts

Chrysler Crossfire Key Features:
  • Quality: Made to Chrysler specs, 100% fit guarantee.
  • Original Configuration: One piece top with integrated window section.
  • Original Factory Material: A5 Sonnenland Canvas
  • Original Window: Glass Defroster Window
  • Original Colors: Black
  • Alternate Materials: Sonnendeck and Stayfast canvas
  • Shop with confidence:Warranty Info: EZ ON brand comes with 3-year warranty for the Top & Glass Window Bond warranty to the original purchaser, and includes (18) months labor allowance.

Convertible Tops and Packages

Convertible Tops and Packages

A.) 2004-2008 Chrysler Crossfire Convertible Top with Defroster glass.
Made in Haartz Stayfast Canvas


  • Made with Factory Style Die Cut Plastic Retainers
  • Includes Rain-Guards above side windows
  • Comes with a 3 Year Warranty for the Top and Window Bond to the original purchaser.

Our installation booklet describes (illustrated, step by step) how to remove the old top and install the new. The Chrysler Crossfire top does lend itself to owner installation by the patient, handy person. The top installs with clips that need to be saved from the old top, and rivets. There is no sewing. Please order the installation kit if you wish to install this top.
For: 2004-2008 Chrysler Crossfire Convertible Top
Color
View Color
$1346.00
B.) 2004-2008 Chrysler Crossfire Convertible Top with Defroster glass.
Made in Haartz Twillfast Canvas


  • Made with Factory Style Die Cut Plastic Retainers
  • Includes Rain-Guards above side windows
  • Comes with a 3 Year Warranty for the Top and Window Bond to the original purchaser.

Our installation booklet describes (illustrated, step by step) how to remove the old top and install the new. The Chrysler Crossfire top does lend itself to owner installation by the patient, handy person. The top installs with clips that need to be saved from the old top, and rivets. There is no sewing. Please order the installation kit if you wish to install this top.
For: 2004-2008 Chrysler Crossfire Convertible Top
Color
View Color
$1374.00
Chrysler Crossfire convertible tops and parts in this category fit model years: 2004, 2005, 2006, 2007 and 2008


Installation Supplies

Installation Supplies

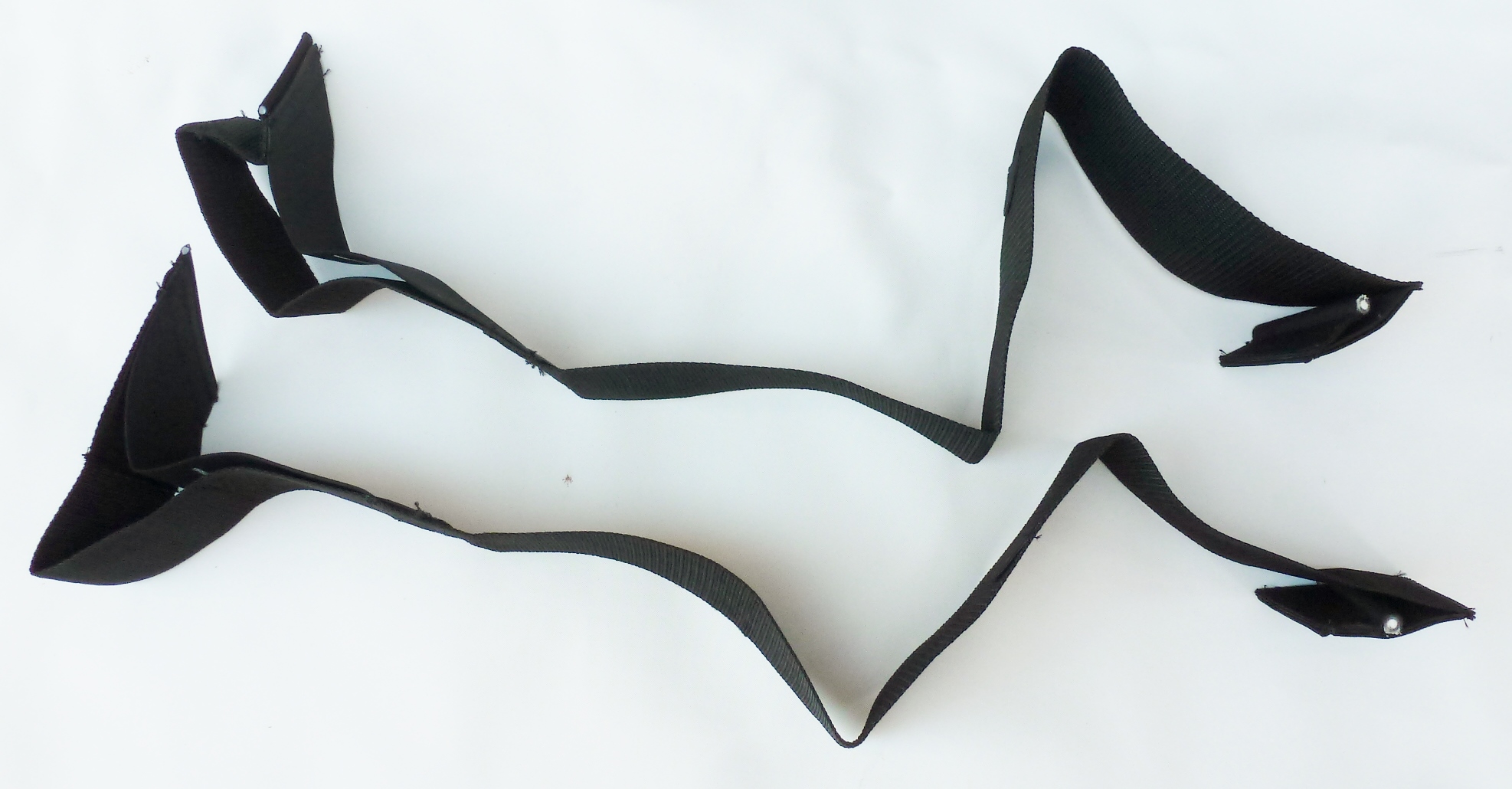

2004-08 Chrysler Crossfire Top Frame Straps, Pair
$119.95

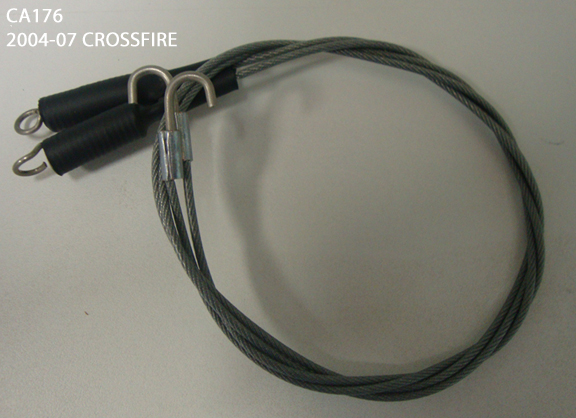

2004-2007 Chrysler Crossfire Convertible, Side Tension Cables, Pair

American made in the USA (beware of inferior made imports)
$59.95

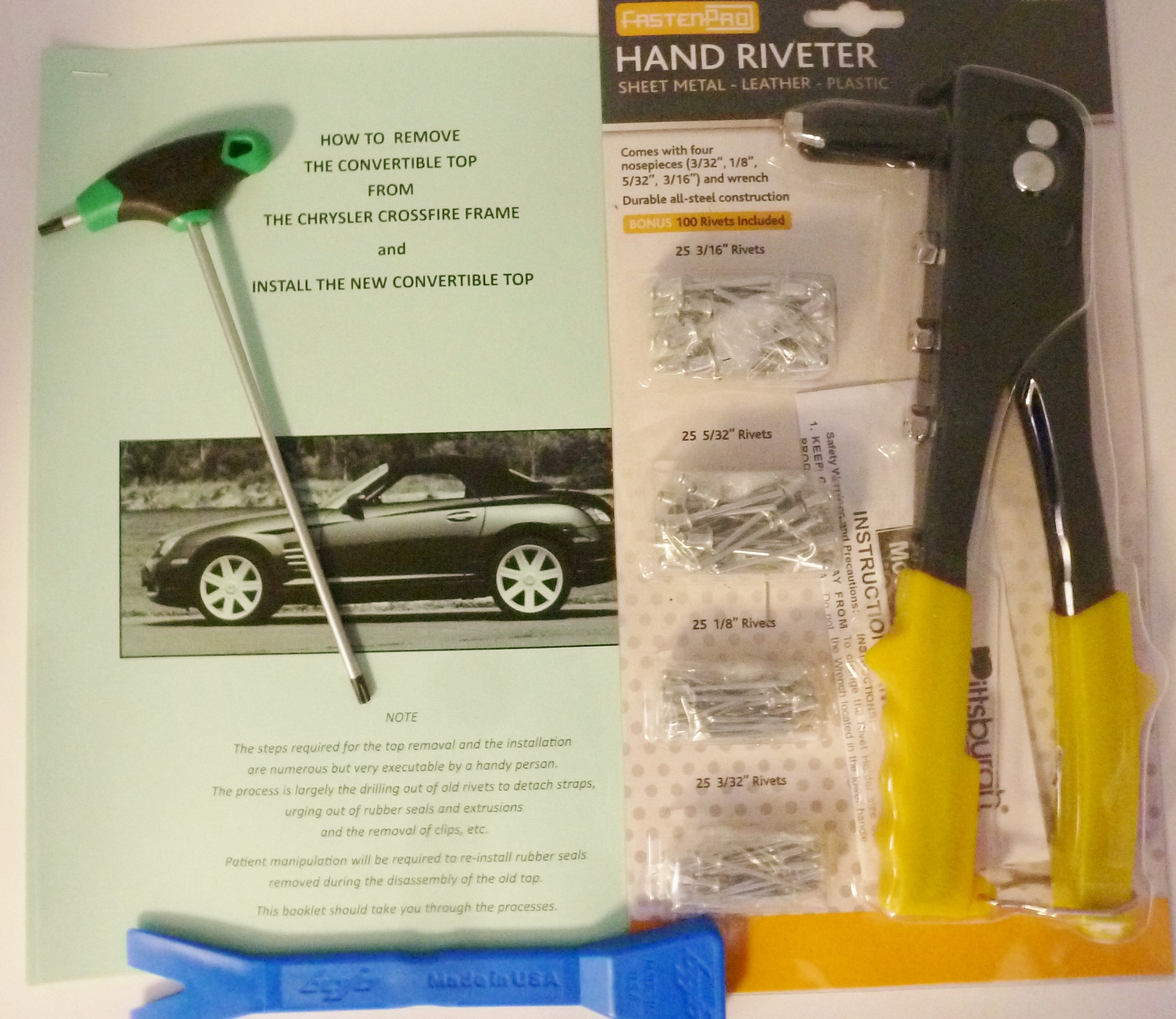

Convertible Top installation kit.
  • Installation manual: How to remove existing top and install a new top in a detailed step by step illustrated guide.
  • Special Torx driver for Crossfire hardware
  • Rivet gun and supply of aluminum rivets
  • Upholsterers "pry/push" tool for dealing with rubber seals.
  • Adhesive
$72.95
ARROW RIVET TOOL KIT RL100 rivet tool is built to last Durable all-steel construction with a - comfortable hi-vis vinyl grip Spring loaded handle makes for easy loading Includes two interchangeable nose pieces & - 25 ea. 1/8" & 3/16" medium aluminum rivets Includes custom molded case for easy storage and 50 of our two most popular rivets 25 each of 1/8 medium rivet and 25 each of 3/16 medium rivets.
$22.95
Plastic pry tool, great for prying fasteners and seals, pushing seals into retainers, loosening fabric etc
$12.95
Trimmer Contact Cement: 4-Oz. Brush Top Can. Strong, Waterproof, Flexible Bond for Vinyl-coated and Vinyl-laminated Fabrics.
$14.95
Plastic pry tool set, 7-piece kit

Great for prying fasteners and seals, pushing seals into retainers, loosening fabric etc.

$34.95


Hydraulics

Hydraulics

"O" Ring Motor Pump Service Kit For Any American Makes

Our O-Ring kit contains the following items:(1) Drive Pin, (1) 1/8" Chrome Ball, (2) 1/4" Chrome Ball, (2) Pump Port O-Ring, (2) Reservoir O-Ring, (1) Reservoir bolt O-Ring, (1) Reservoir plug, (1)Reservoir Plug O-Ring (metal plug only).

$24.95
Hydraulic System Guide: A well illustrated 10 page, 8 1/2 x 11 guide to the operation, diagnosis, and bleeding of the motor pump and to the motor/pump and cylinder removal and reassembly. Diagnosis includes electrical testing procedures.
$9.95
Set of 4 New Pointed Pump Grommets
$7.95
Top Cylinder Mounting Bolt, One.
With Pin and Bushings
1 5/8" Long, 3/8" Diameter.
$11.95
Top Cylinder Mounting Bolt, One
With Pin and Bushings.
1 1/8" Long, 3/8" in Diameter.
$11.95
Top Cylinder White Nylon Bushing, Each
$2.95
Motor pump reservoir plug, black rubber
$2.39


Cleaning & Protectant

Cleaning & Protectant

A PACKAGE SPECIAL:
A Combination Pack of RAGGTOPP Brand Canvas Cleaner & Protectant.
  • Plus:
  • Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit.
  • The Natural Horsehair Convertible Top Cleaning Brush
$79.95
A Combination Pack of RAGGTOPP Brand Canvas Cleaner & Protectant

About RAGGTOPP products
$39.95
A PACKAGE SPECIAL:
A Combination Pack of the RAGGTOPP Brand Vinyl Cleaner and Protectant.
  • Plus:
  • Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit.
  • The Natural Horsehair Convertible Top Cleaning Brush
$79.95
A Combination Pack of the RAGGTOPP Brand Vinyl Cleaner and Protectant Together

About RAGGTOPP products
$38.95
Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit

Contains:

  • Bottle Window Cleaner
  • Bottle Window Protectant
  • Sponge, Applicator Pad
  • Microfiber Towel

About RAGGTOPP products
$32.95
Natural Horsehair Convertible Top Cleaning Brush

About Natural Horsehair Brush
$14.95


Custom Fit Car Covers

Custom Fit Car Covers

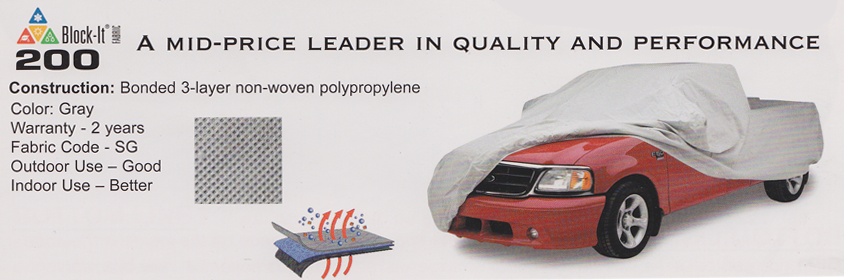

2004-08 Chrysler Crossfire Convertible, Custom Fit Car Cover, 200 Series
$155.95

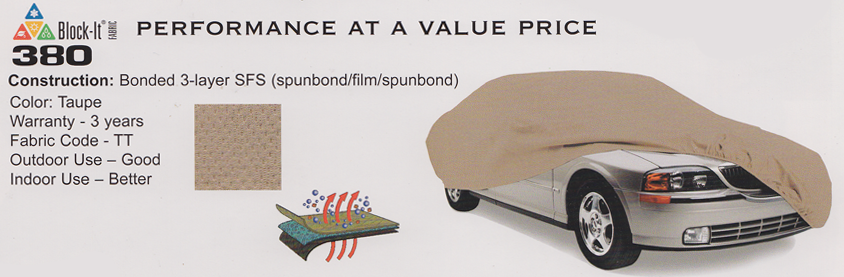

2004-08 Chrysler Crossfire Convertible, Custom Fit Car Cover, 380 Series
$179.95




Important Information

Original Factory Color(s): Black

Window:The top will include a heater/defroster glass window as is original.

About The Materials:

German Sonnenland Canvas is the original German made canvas used in many Mercedes, Porsche, BMW and other convertibles. It's general construction is very similar to the other two canvases. It is hard to tell the surfaces apart among the three. But the manufacturing specifications make this the longest lasting top. There is an approximate twenty percent greater wear rating for Sonnenland than for Haartz Stayfast. Some of this is due to the abrasion resistance of the exterior canvas. This is a factor in certain tops where the framework design tends to produce friction between the top's surface and the car's hardware. (It is a well known 'trade secret' that the Haartz Division of Glen Raven Mills purchased the Sonnenland factory.)

Sonnendeck Canvas (also called 'Twillfast') is an American made canvas, true double texture topping like the Haartz Stayfast. Many purists who own Mercedes and other German cars want to see the particular German weave (that is called "dobby weave") when they look up inside the car. Haartz Stayfast canvas has a plain (unwoven) inner lining. So for Porsche, Mercedes and BMW owners who will spend a little more in order to see that "dobby" weave we offer a fabric called Sonnendeck (in addition to the original German Sonnenland or Happich canvas. The wear rating of Sonnendeck is also greater than for Haartz, by perhaps 10%. This is due to the slightly heavier inner lining and subtle bonding specification differences.

 Haartz Stayfast Canvas has a canvas outer layer and a preshrunk cotton inner layer. The two are bonded with and separated by a butyl rubber core. It is this core that makes the fabric last a very long time, with both better static and dynamic wear ratings than vinyl toppings. Haartz Stayfast is the American substitute for the German canvases used in Mercedes, Porsche, BMW, some models of Mustang and Lebaron and others. Canvas is widely regarded as "richer looking" than vinyl. It is a little harder to clean. The inside of the top is pre-shrunk cotton. The inner lining is usually black.



CONVERTIBLE TOP FABRICS
Almost all manufacturers use Haartz fabrics. They may specify "heaviest weight" or "original replacement" in ways that seem reassuring. But they do not really tell the whole story. Please bear in mind that two things dominate, by far, the quality issue: (a) the manufacturing quality control in the factory that makes the top and (b) the care and thoroughness of the installation. There is a trade-off in weight: heavier is better for resisting tear through, but lighter is better for flexibility and abrasion from within that may arise from movement. Almost all our tops are a flexible medium density (36 oz.) fabric. Heavier is not better in most cases. Where it is, because of the top design, we will say so and the top will be made of the heavier vinyl.
Warranties outlined here are only applicable for products installed by a professional trim shop or professional upholstery shop. For Convertible Tops, and related products, the manufacturer will void the warranty for any product that is not professionally installed; manufacturer defects are covered by the warranty in such cases. The manufacturer is not responsible for damage due to improper installation.


Parts in this category (Chrysler Crossfire) fit cars for years: 2004, 2005, 2006, 2007 and 2008.
