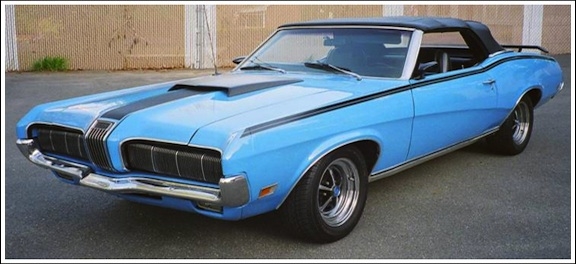

Mercury Cougar, 1969-70
Convertible Top and Convertible Top Parts
- Quality: Made to original specs, 100% fit guarantee.
- Original Configuration: Two piece top, top section and window section integrate upon installation. Molding over rear window and chrome tips supplied. Extra fabric for header bow seal included.
- All seams are doubly electronically welded and sewn for added reinforcement. Convertible top fabrics are mildew & mold resistant, and UV treated for color fastness. Plastic windows are DOT rated heavy 40-gauge thick vinyl.
- Original Fabrics: Haartz Pinpoint Vinyl in black, Ford white and Ford blue (a pale blue now discontinued); Haaratz Stayfast Canvas in black.
- Windows: We offer tops with original plastic window and also with an aftermarket hinged glass window as illustrated below.. Plastic windows are "full view" which extend down to the base line. You may add a lower fabric trim section to plastic windows in the checkout process. Glass windows always have the lower fabric.
- Installation: Professional installation is suggested. A handy and meticulous person may consider DIY installation. This comprises use of a stapling gun and contact cement (as outlined in the manual summary in the link below.) There is no sewing involved. To locate a professional installer please enter "automobile upholstery shops near me" in your browser search bar.
- Shop with confidence: 6 year manufacturer warranty.
- Hydraulic Components: Hydraulic cylinders, motor pumps and hose sets all available and in stock.
- Preview our Convertible Top Installation Guide
Hydraulic components are in stock.
This is a classic two part convertible top. The main top and the rear window section are integrated during installation. You can read all about how this is done at the link below to a summary of our two part top installation manual.
The summary posted here, or the complete manual will allow you to make an intelligent decision about self installation.

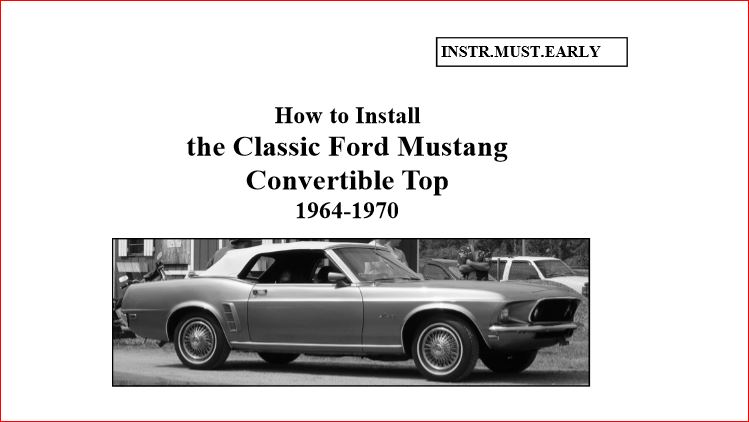

For these Mustangs we also have a detailed illustrated top installation manual specifically for the classic Mustang. It is available only with a purchase of a new top; this manual is included in our top special packages.
If you are comfortable renting and using an air driven staple gun then you are a good candidate for do-it-yourself installation. There is stapling (with stainless steel staples) and glue work. There is no sewing.
These tops are available in Haartz Pinpoint vinyl, Haartz Stayfast canvas or in Eurotopping. Eurotopping is identical to Haartz pinpoint vinyl in appearance. However it is constructed with a butyl rubber central layer (between the outer vinyl and the inner cloth) that makes it extremely durable. This butyl rubber core is also characteristic of Haartz Stayfast canvas.
The original rear window is plastic. We use the highest grade 'Regalite' automotive window plastic in our tops.
There is an aftermarket rear window available in glass. It is a hinged glass, shown in the picture at the top of this page.
Hold down cables:
Cables are installed in the side pockets of the top and hold the top to the top frame at the sides. More on this is in the install link below. New cables are recommended with each top.
Tack strips are embedded in the front and rear top bows and receive the tacks or staples that fasten the top. Tack strips usually last through two tops. Replacement strips are available (See "accessories.")
The rear bottom of the top is stapled or tacked to a belt line tacking form. This consists of three separate pieces which, collectively, are called 'the trim stick.' Trim sticks can usually be repaired by splicing new tacking material.

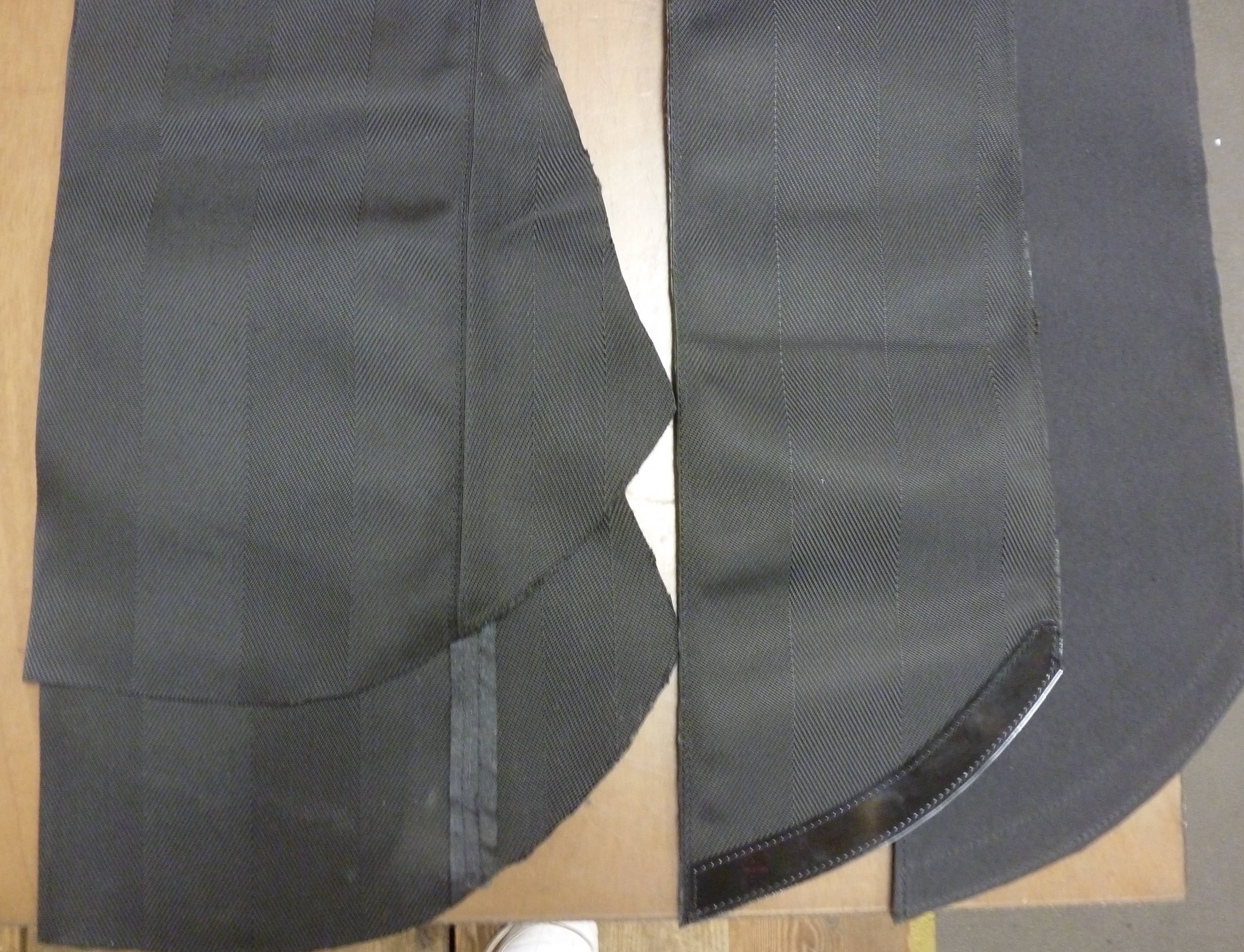

Pads are nylon reinforced webbing that install under the top, front to rear, along the sides. They "build out" the top. Pads usually last through two tops. They are also available here, at "accessories."

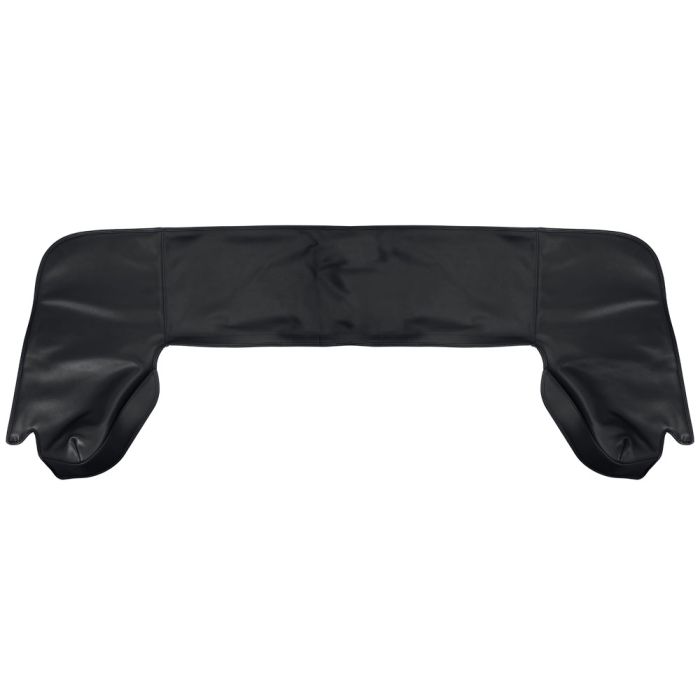

The original Mustang boots were usually Sierra vinyl leather grained boot swatches that you can view. Just click on the "check out boot fabrics" and you will see the choice of boot vinyls. Please jot down your choice. You can specify it in the checkout message box.
Boots are custom made from original boot patterns. Please allow up to three weeks for a boot to be made and shipped.
Interior Restoration Book:
We've listed a book by Art Trantafello uder 'accessories.' It is an extremely well written and illustrated book on all aspects of upholstery work. It includes a great chapter on installing the top..
We now stock hydraulic cylinders, motor-pumps, and hoses for your convertible tops. All are made to OEM specifications. Each can be ordered separately; however, when ordering hydraulic cylinders we recommend replacing both. The chances are that both cylinders were manufactured at the same time: if one is on its way out the other may follow. If the top is raised and one hydraulic cylinder is working harder than the other the result over time can lead to a slightly bent convertible top frame. The replacement of both will ensure that the top raises and lowers symmetrically.
Systems for this car take Automatic Transmission Fluid (ATF) and have a 1 year warranty when used with this fluid. Brake fluid should not be used as it voids the warranty. We also offer an installation manual when ordered.
The 12 volt motor-pumps include a mounting bracket with rubber grommets to reduce vibration. . We also offer a rebuilding service for motor-pumps. Not all are repairable, but it is less expensive to have one rebuilt than to buy a new one. The motor-pump would need to be sent to us for evaluation. Hoses come with all new fittings and are made specifically to fit your car.
Almost all manufacturers use Haartz fabrics. They may specify "heaviest weight" or "original replacement" in ways that seem reassuring. But they do not really tell the whole story. Please bear in mind that two things dominate, by far, the quality issue: (a) the manufacturing quality control in the factory that makes the top and (b) the care and thoroughness of the installation. There is a trade-off in weight: heavier is better for resisting tear through, but lighter is better for flexibility and abrasion from within that may arise from movement. Almost all our tops are a flexible medium density (36 oz.) fabric. Heavier is not better in most cases. Where it is, because of the top design, we will say so and the top will be made of the heavier vinyl.
- Sonnenland® is a German-made 3-ply topping made up of an acrylic twill-weave facing, a rubber inner-layer, and a polyester "dobby backing." The dobby backing is a knit-like weave original to many high-end foreign cars. Customers who value originality over cost often pay top dollar for Sonnenland, just to have that authentic "dobby backing," seen only when you look up at the roof of your convertible top from inside your car. Sonnenland canvas is a top-of-the-line material original to various Audi, BMW, and Jaguar convertibles, among others. Sonnenland Canvas can vary in terms of surface weave and/or weight for acoustic performance, but all Sonnenland Canvas promises elegance and long-lasting durability.
- Twillfast®, also called Sonnendeck Canvas, is an American-made canvas - a cost-effective substitute for Sonnenland. Twillfast is usually a 3-ply topping (though some versions are 5-ply) with Polyester and/or Polyester/cotton backings. This material, original to certain Camaro, BMW, Mustang, and VW Beetle convertibles, among others, varies in terms of surface weave and/or weight for acoustic performance. Twillfast Canvas is identical to Sonnenland Canvas - elegant and durable - only it's less expensive. This is a top-notch convertible top material, one we often recommend to savvy customers who like a good buy and a quality product.
- Stayfast Canvas is an elegant, durable canvas original to cars like the Mazda Miata and the Nissan 370Z. Stayfast is commonly used in replacement convertible tops. Stayfast canvas has an acrylic square weave facing, a rubber inner-layer, and a cotton backing. As with other canvases, the rubber core gives the fabric long-lasting durability. Stayfast canvas is a sleek, beautiful canvas, usually less expensive than Twillfast, but it does not have the dobby backing offered in Sonnenland and Twillfast (Sonnendeck). Stayfast is a popular upgrade to vinyl convertible tops, and as with any canvas, is richer looking and has a higher wear rating than convertible tops made of vinyl.
- Haartz Pinpoint Vinyl is the most popular fabric. This vinyl design is original to most American cars from the fifties to the nineties. Pinpoint refers to the little dots or pips that you see if you look closely at the vinyl surface. European cars, such as the old Beetles and others also used pinpoint vinyl as the topping fabric.
- Chrysler Sailcloth is featured on many late LeBarons, Sebrings, certain Mustangs and other cars. It is structurally (wear quality) equivalent to the Haartz Pinpoint but has a different surface grain. The grain was designed to imitate the look of canvas. As you can see from the scan of this fabric, it is an exceptionally rich looking material. It is sometimes chosen for replacing convertible tops that originally featured pinpoint vinyl.
- Cabrio Grain is also structurally equivalent to the pinpoint. It has a pigskin outer grain vinyl as original to Volkswagen Cabriolets from 1984 onward and to Mazda Miatas and Mercury Capris.
- A5S German Canvas (Robbins) The 100% Acrylic Twill Weave Surface Cloth receives a special flame singing treatment to remove the fabric knap; and is laminated to Black 100% Polyester Dobby backing.
This is the original topping for Porsche Boxster and Cabrio convertible tops. 59 inches (150 cm) wide, made in Germany.
- British Bison Vinyl is the most popular British roadster convertible top material. It is American made Haartz leather grain vinyl and is an imitation of the British Everflex vinyl top fabric. The British Bison Vinyl convertible top fabric is often referred to as 'crush grain.'
- British Everflex Vinyl We are now pleased to offer British Everflex Vinyl for classic English tops. This is the original material used on British convertibles including Jaguar, Rolls Royce and many others. Imported from England, British Everflex vinyl is a supple vinyl with a rich appearance and is more durable than other vinyls. A good, less expensive alternative is Colonial grain vinyl. Colonial has the same texture but is less durable.
- HV Denim (also called Twill Weave Vinyl) is heavy duty sport material composed of a distinctive twill grain PVC outer layer and a polyester/cotton blend inside lining fabric.
- Trilogy Acoustic Vinyl A heavyweight vinyl that is often used on SUVs like Jeep, because the two-ply composite has the capacity to reduce noise by about 20 percent compared to standard vinyls like Sailcloth. The vinyl material is durable, promises long-lasting wear-and-tear, and resembles the sleek twill cloth commonly found on luxury convertible cars.
- Haartz Twillfast RPC This American-made canvas has a twill weave pattern and resembles German-made Sonnenland canvas. It is a great all-purpose canvas and, according to Haartz, is used on 99 percent of convertibles. It is stronger and more durable than Stayfast Canvas and offers more sound protection. Haartz rates Twillfast RPC as a mid-level acoustic product, compared to the low-level sound reduction offered on other top materials like Stayfast
Parts in this category (Mercury Cougar) fit cars for years: 1969 and 1970.
