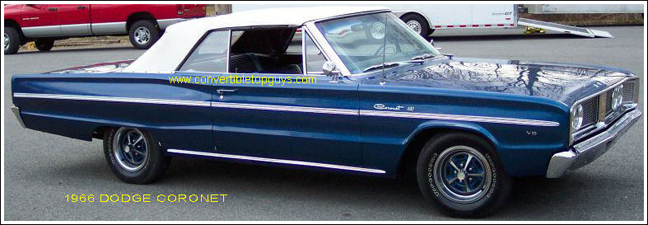

Dodge Coronet, 1966
Convertible Top and Convertible Top Parts

Dodge Coronet, 400 & 500 Convertible Top Key Features:
  • Quality: Made to Dodge specs, 100% fit guarantee
  • Original Configuration: Two piece top, top section and plastic window section joined upon installation. Molding over rear window and its chrome tips included.
  • Original Factory Material: Pinpoint Vinyl in black and classic white.
  • Alternate Materials: Haartz Stayfast Canvas
  • All seams are doubly electronically welded and sewn for added reinforcement. Convertible top fabrics are mildew & mold resistant, and UV treated for color fastness. Plastic windows are DOT rated heavy 40-gauge thick vinyl
  • Shop with confidence: 6-year manufacturer warranty


Can I install this top myself?
Preview our Convertible Top Installation Guide





Convertible Tops and Packages

Convertible Tops and Packages

A.) Dodge Coronet Convertible Top with Plastic Rear Window
Choice of Crush grain or Pinpoint Vinyl

Installation Manual included if requested.

Note: Window is "full view" with no lower fabric band. If you wish to add a band ('feature strip') then you can do so via your shopping cart.
Color/Fabric:

As low as:
$349.00
B.) A Package Special:
Haartz Pinpoint Vinyl or Crush Grain Vinyl Convertible Top with Plastic Rear Window.

 Window is 'full view.' You will have the option of adding a lower fabric band ('feature strip') via your shsopping cart.

Also included:
Set of top pads
Pair tack strips for header and rear top bows
Pair side hold down cables,
Trimmer Contact Cement
Installation Manual (see below)
Color/Fabric:

As low as:
$369.00
C.) A PACKAGE SPECIAL:

Haartz Stayfast Canvas top with Plastic Rear Window.

Also included:
Set of top pads
Pair tack strips for header and rear top bows
Pair side hold down cables
Trimmer Contact Cement 4 oz.
Installation Manual (see below)
For: 1966 Dodge Coronet Convertible Top
Color
View Color
Why Buy a Package Special?
$599.95
D.) C.) Haartz Pinpoint Vinyl Plastic Window Section Only

Window is "full view." You will have the option of adding a lower fabric section ('feature strip') in the shopping cart.
For: 1966 Dodge Coronet Convertible Top
View Color
$129.95


Installation Supplies

Installation Supplies

New Edition!!!
Convertible Top Guys' "How To Remove and Install Classic Two-Part Tops."

This 40-page, extensively illustrated how-to manual walks you through removing and installing a two-part convertible top. The manual applies to almost all American convertibles made before the year 2004, and some foreign cars, too, like Celicas and Saabs. This is a bound 8 1/2 x 11 book; designed as both a tutorial for first-time installers and as a step-by-step manual for these convertible tops. Generally, all that is needed and not contained is the "bow height" which is the setting of the rear top frame bow for your convertible. This is available from any top distributor.

What skills are required ? (1) The ability to drive staples into bow frame tacking strips (2) The ability to orient fabric sections to the frame and apply with contact cement. (3) A systematic and careful personality ! (There is never any sewing required.)

Note: Very early cars (forties) had wood bows and installers will have to adjust processes for stapling to these bows instead of tacking strips in steel bows as described in manual.

   Details...

$30.95
5' of front and 10.5' of rear tack strip for a 1966 Dodge Coronet. Rear tack strip needs to be doubled to equal the original.
   Details...

$24.95
Convertible Top Pads, Pair



   Details...

$39.95
Plastic pry tool, great for prying fasteners and seals, pushing seals into retainers, loosening fabric etc
$9.95
The Arrow T50ACD electric staple gun drives wire staples with force. It will securely drive 1/4" and 3/8" staples into modern convertible top tack strips, eliminating the need for an air gun for convertible top installation. This stapler comes with the a supply of 1/4" and 3/8" staples.

This stapler also has a brad driving capability, so you can use this stapler again and again for a variety of jobs.

The Arrow T50ACD packs a well-balanced powerful, durable design. Comes complete with 10-foot, heavy-duty cord, a supply of T50 series staples, and a one-year manufacturer's warranty.

The Arrow T50ACD stapler has a spiral driven mechanism for consistent powerful driving power. Additional features include safety trigger lock, comfortable non-slip cushion grip, fastener reload, all-steel working parts, and 14-amp motor.
   Details...

$56.95
Universal Domestic, Side Tension Hold Down Cables, Pair (with springs)

American made in the USA (beware of inferior made imports)
   Details...

$32.00
Arrow T-50 Stainless Staples, 1/4", 300 Count



$4.95
Arrow T-50 Stainless-Steel Staples 3/8", 300 Count



$4.95
Arrow T-50 Stainless-Steel Staples, 3/8", 1000 Count



$13.95
Arrow T-50 Stainless-Steel Staples, 1/4", 1000 Count
$13.95
Trimmer Contact Cement: 4-Oz. Brush Top Can. Strong, Waterproof, Flexible Bond for Vinyl-coated and Vinyl-laminated Fabrics.
$8.95
Trimmer Contact Cement: 8-Oz. Brush Top Can. Strong, Waterproof, Flexible Bond for Vinyl-coated and Vinyl-laminated Fabrics.
$12.95
3M Black Super Weatherstrip Adhesive, 5oz Tube
Build out or caulk under your rubber seals.
Repairs cracks in seals.
Insure against leakage.
   Details...

$13.95
Plastic pry tool set, 7-piece kit

Great for prying fasteners and seals, pushing seals into retainers, loosening fabric etc.

$26.95


Hydraulics

Hydraulics

1966 Dodge Coronet Convertible Top Hydraulic Cylinder, Each
$139.95
1966 Dodge Coronet Convertible Top Hydraulic Cylinders, Pair
$269.95
1966 Dodge Coronet Convertible Top Hydraulic Hose Set
$99.95
Convertible Top Hydraulic Motor Pump
Made in the U.S.A.
$279.95
Hydraulic System Guide: A well illustrated 10 page, 8 1/2 x 11 guide to the operation, diagnosis, and bleeding of the motor pump and to the motor/pump and cylinder removal and reassembly. Diagnosis includes electrical testing procedures.
$14.95
Set of 4 New Pointed Pump Grommets
$7.95
Top Cylinder Mounting Bolt, One.
With Pin and Bushings
1 5/8" Long, 3/8" Diameter.
$11.95
Top Cylinder Mounting Bolt, One
With Pin and Bushings.
1 1/8" Long, 3/8" in Diameter.
$11.95
Top Cylinder White Nylon Bushing, Each
$2.95
Motor pump reservoir plug, black rubber
$1.95


Boots

Boots

Convertible Top Boot, Attaches as Original - In Original Sierra Vinyl.
Includes 35 Snaps, 35 Studs and Snap/Stud Installation Tool
View Color
$214.95
Convertible Top Boot Bag
$33.95


Cleaning & Protectant

Cleaning & Protectant

A PACKAGE SPECIAL:
A Combination Pack of RAGGTOPP Brand Canvas Cleaner & Protectant.
  • Plus:
  • Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit.
  • The Natural Horsehair Convertible Top Cleaning Brush
$79.95
A Combination Pack of RAGGTOPP Brand Canvas Cleaner & Protectant

About RAGGTOPP products
$38.95
A PACKAGE SPECIAL:
A Combination Pack of the RAGGTOPP Brand Vinyl Cleaner and Protectant.
  • Plus:
  • Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit.
  • The Natural Horsehair Convertible Top Cleaning Brush
$79.95
A Combination Pack of the RAGGTOPP Brand Vinyl Cleaner and Protectant Together

About RAGGTOPP products
$34.95
Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit

Contains:

  • Bottle Window Cleaner
  • Bottle Window Protectant
  • Sponge, Applicator Pad
  • Microfiber Towel

About RAGGTOPP products
$30.95
Natural Horsehair Convertible Top Cleaning Brush

About Natural Horsehair Brush
$14.95


Weatherstripping

Weatherstripping

Front Bow Retainer to Header Seal. 60-1/4" long. Each.

Fits:1966-67 Belvedere, Coronet, Charger, GTX, Satellite

$39.95


Important Information

Original Factory Color(s): Black and GM White

Fabrics:
The original Dodge Coronet tops were in pinpoint vinyl. We also offer these tops in Haartz Stayfast canvas. You can read more details about topping fabrics at the "HELP" link at the top of this page.

Windows:
The rear window is a zippered plastic one, as original.

Pads:
Wrapped foam pad sections are applied under the top to 'build out' the top. We can supply the pad sets.

Tack Strips:
Tack strips are embedded in the front (header) frame bow and in the rear top bow (the one over the rear window.) They receive staples that hold the top to the frame along these bows.

Hold Down Cables:
A pair of cables hold the sides of the top to the frame. Cables are embedded in the top's cable hems during installation and are hidden after installation. New cables are recommended with each top.

Installation:
This is a classic two part top. The 'main top' and the 'curtain' are integrated during the installation process. The procedure can be seen via the blue link below to our booklet on installing classic two part tops.

If you are comfortable renting and using an air driven staple gun then you are a likely candidate for do-it-yourself installation. This involves stapling and gluing. There is no sewing.

Boots:
A convertible top stowage boot is optional. We strongly recommend boots made of modern boot vinyl. These have a slight "give" and a broad array of color choices. Boots made in this fabric are much easier to use than boots made of topping fabric. Usually a boot is chosen in a color to coordinate with the paint and/or interior.

Hydraulics:

We now stock hydraulic cylinders, motor-pumps, and hoses for your convertible tops. All are made to OEM specifications. Each can be ordered separately; however, when ordering hydraulic cylinders we recommend replacing both. The chances are that both hydraulic cylinders were manufactured at the same time: if one is on its way out the other may follow. If the top is raised and one hydraulic cylinder is working harder than the other the result over time can lead to a slightly bent convertible top frame. The replacement of both hydraulic cylinders will ensure that the top raises and lowers symmetrically.

Systems for this car take Automatic Transmission Fluid (ATF) and have a 1 year warranty when used with this fluid. Brake fluid should not be used as it voids the warranty. We also offer an installation manual when ordered.

The 12 volt motor-pumps include a mounting bracket with rubber grommets to reduce vibration.

We also offer a rebuilding service for motor-pumps. Not all are repairable, but it is less expensive to have one rebuilt than to buy a new one. The motor-pump would need to be sent to us for evaluation. Hoses come with all new fittings and are made specifically to fit your car.

Do-it-yourselfers:   Read a summary of convertible top installation.
CONVERTIBLE TOP FABRICS
Almost all manufacturers use Haartz fabrics. They may specify "heaviest weight" or "original replacement" in ways that seem reassuring. But they do not really tell the whole story. Please bear in mind that two things dominate, by far, the quality issue: (a) the manufacturing quality control in the factory that makes the top and (b) the care and thoroughness of the installation. There is a trade-off in weight: heavier is better for resisting tear through, but lighter is better for flexibility and abrasion from within that may arise from movement. Almost all our tops are a flexible medium density (36 oz.) fabric. Heavier is not better in most cases. Where it is, because of the top design, we will say so and the top will be made of the heavier vinyl.
