Cadillac Coupe deVille (H & E), 1986-89
Convertible Top and Convertible Top Parts

ABOUT THESE CADILLAC DEVILLE CONVERTIBLE TOPS

These convertible bodies were made for GM by H & E (Hess & Eisenstadt). Please check for name plate on driver door or trunk lid to verify.

Also note: The tops were made with two slightly different deck seam spacing. Measure across
the fourth top bow from seam to seam. This will be either 48” or 49”/ Order your top accordingly.

Pictured: Original glass window top. Our replacements are made with a plastic rear window.

Original Configuration: This is a classic two part top. The main top and the rear window sectins are integrated upon installation. Included is the molding that staples over the rear window and its chrome tips.

Original Fabrics: Tops were made in Haartz Stayfast Canvas, usually black. Some tops were made in dark blue. More colors (listed) are available in Haartz Pinpoint Vinyl.

Installation: The top installs with stapling and contact cement (no sewing.) Our two part top manual covers all the steps. The original top must be available to transfer measurements.

Warranty: The tops are made by EZ-On and carry their 3 year factory warranty with 18 month labor allowance.

All seams are doubly electronically welded and sewn for added reinforcement. Convertible top fabrics are mildew & mold resistant, and UV treated for color fastness. Plastic windows are DOT rated heavy 40-gauge thick vinyl.

Hydraulic components are stocked.

Convertible Tops and Packages

Convertible Tops and Packages

A.) Haartz Pinpoint Vinyl Deville Convertible Top
With Plastic Rear Window
48" deck seam (see how to measure above).
For: 1986-89 Cadillac Coupe deVille (H & E) Convertible Top
Color
View Color
$581.00
B.) Haartz Pinpoint Vinyl Deville Convertible Top
With Plastic Rear Window
49" deck seam (see how to measure above).
For: 1986-89 Cadillac Coupe deVille (H & E) Convertible Top
Color
View Color
$581.00
C.) Haartz Stayfast Canvas Deville Convertible Top
With Plastic Rear Window
48" deck seam (see how to measure above).
For: 1986-89 Cadillac Coupe deVille (H & E) Convertible Top
Color
View Color
$1010.00
D.) Haartz Stayfast Canvas Deville Convertible Top
With Plastic Rear Window
49" deck seam (see how to measure above).
For: 1986-89 Cadillac Coupe deVille (H & E) Convertible Top
Color
View Color
$1010.00
Cadillac Coupe deVille (H & E) convertible tops and parts in this category fit model years: 1986, 1987, 1988 and 1989


Installation Supplies

Installation Supplies

New Edition!!!
Convertible Top Guys' "How To Remove and Install Classic Two-Part Tops."

This 40-page, extensively illustrated how-to manual walks you through removing and installing any two-part convertible top. The manual applies to almost all American convertibles made before the year 2004, and some foreign cars, too, like Celicas and Saabs. This 8 1/2 x 11 book is designed as both a tutorial for first-time installers and as a step-by-step manual for these convertible tops. Generally, all that is needed and not contained is the "bow height" which is the setting of the rear top frame bow for your convertible. This is available from any top distributor ot can be measured with the old top on the car (as illustrated.)

What skills are required ? (1) The ability to drive staples into bow frame tacking strips (2) The ability to orient fabric sections to the frame and apply with contact cement. (3) A systematic and careful personality ! (There is never any sewing required.)

Note: Very early cars (forties) had wood bows and installers will have to adjust processes for stapling to these bows instead of tacking strips in steel bows as described in manual.

   Details...

$30.95
Front and Rear Top Frame Bow Tack Strips
(Tacking strips for most top frames. Some may vary, especially pre-60s cars.)

Dimensions: 5/8" X 3/16" and 1/2" X 1/4" (in 6 foot lengths.)
Note: These usually apply. In certain convertible top frames (especially pre-sixties) the cross sections of the header and rear top bows vary. You can measure the top bow channel cross sections and let us know if yours vary from the usual plastic ones. In that case include your tack strip selection in checkout message.
   Details...

$23.95
Universal Domestic, Side Tension Hold Down Cables, Pair (with springs)

American made in the USA (beware of inferior made imports)
   Details...

$31.00
ARROW RIVET TOOL KIT RL100 rivet tool is built to last Durable all-steel construction with a - comfortable hi-vis vinyl grip Spring loaded handle makes for easy loading Includes two interchangeable nose pieces & - 25 ea. 1/8" & 3/16" medium aluminum rivets Includes custom molded case for easy storage and 50 of our two most popular rivets 25 each of 1/8 medium rivet and 25 each of 3/16 medium rivets.
$22.95
The Arrow T50ACD electric staple gun drives wire staples with force. It will securely drive 1/4" and 3/8" staples into modern convertible top tack strips, eliminating the need for an air gun for convertible top installation. This stapler comes with the a supply of 1/4" and 3/8" staples.

This stapler also has a brad driving capability, so you can use this stapler again and again for a variety of jobs.

The Arrow T50ACD packs a well-balanced powerful, durable design. Comes complete with 10-foot, heavy-duty cord, a supply of T50 series staples, and a one-year manufacturer's warranty.

The Arrow T50ACD stapler has a spiral driven mechanism for consistent powerful driving power. Additional features include safety trigger lock, comfortable non-slip cushion grip, fastener reload, all-steel working parts, and 14-amp motor.
   Details...

$59.95
Arrow T-50 Stainless Staples, 1/4", 300 Count



$4.95
Arrow T-50 Stainless-Steel Staples 3/8", 300 Count



$4.95
Arrow T-50 Stainless-Steel Staples, 3/8", 1000 Count



$13.95
Arrow T-50 Stainless-Steel Staples, 1/4", 1000 Count
$13.95
Trimmer Contact Cement: 4-Oz. Brush Top Can. Strong, Waterproof, Flexible Bond for Vinyl-coated and Vinyl-laminated Fabrics.
$14.95
Trimmer Contact Cement: 8-Oz. Brush Top Can. Strong, Waterproof, Flexible Bond for Vinyl-coated and Vinyl-laminated Fabrics.
$20.95
Plastic pry tool set, 7-piece kit

Great for prying fasteners and seals, pushing seals into retainers, loosening fabric etc.

$34.95


Hydraulics

Hydraulics

"O" Ring Motor Pump Service Kit For Any American Makes

Our O-Ring kit contains the following items:(1) Drive Pin, (1) 1/8" Chrome Ball, (2) 1/4" Chrome Ball, (2) Pump Port O-Ring, (2) Reservoir O-Ring, (1) Reservoir bolt O-Ring, (1) Reservoir plug, (1)Reservoir Plug O-Ring (metal plug only).

$24.95
Hydraulic System Guide: A well illustrated 10 page, 8 1/2 x 11 guide to the operation, diagnosis, and bleeding of the motor pump and to the motor/pump and cylinder removal and reassembly. Diagnosis includes electrical testing procedures.
$9.95
Top Cylinder Mounting Bolt, One.
With Pin and Bushings
1 5/8" Long, 3/8" Diameter.
$11.95
Top Cylinder Mounting Bolt, One
With Pin and Bushings.
1 1/8" Long, 3/8" in Diameter.
$11.95
Motor pump reservoir plug, black rubber
$2.39
Set of 4 New Pointed Pump Grommets
$7.95
Top Cylinder White Nylon Bushing, Each
$2.95


Cleaning & Protectant

Cleaning & Protectant

A PACKAGE SPECIAL:
A Combination Pack of RAGGTOPP Brand Canvas Cleaner & Protectant.
  • Plus:
  • Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit.
  • The Natural Horsehair Convertible Top Cleaning Brush
$79.95
A Combination Pack of RAGGTOPP Brand Canvas Cleaner & Protectant

About RAGGTOPP products
$39.95
A PACKAGE SPECIAL:
A Combination Pack of the RAGGTOPP Brand Vinyl Cleaner and Protectant.
  • Plus:
  • Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit.
  • The Natural Horsehair Convertible Top Cleaning Brush
$79.95
A Combination Pack of the RAGGTOPP Brand Vinyl Cleaner and Protectant Together

About RAGGTOPP products
$38.95
Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit

Contains:

  • Bottle Window Cleaner
  • Bottle Window Protectant
  • Sponge, Applicator Pad
  • Microfiber Towel

About RAGGTOPP products
$32.95
Natural Horsehair Convertible Top Cleaning Brush

About Natural Horsehair Brush
$14.95


Carpets

Carpets

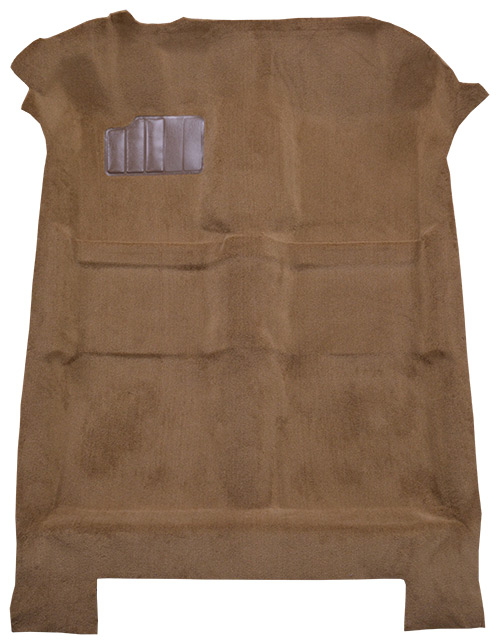

Cut Pile Carpet, 1986-88 Cadillac Coupe DeVille
COLOR
View Color
$309.00


Important Information

CONVERTIBLE TOP FABRICS
Almost all manufacturers use Haartz fabrics. They may specify "heaviest weight" or "original replacement" in ways that seem reassuring. But they do not really tell the whole story. Please bear in mind that two things dominate, by far, the quality issue: (a) the manufacturing quality control in the factory that makes the top and (b) the care and thoroughness of the installation. There is a trade-off in weight: heavier is better for resisting tear through, but lighter is better for flexibility and abrasion from within that may arise from movement. Almost all our tops are a flexible medium density (36 oz.) fabric. Heavier is not better in most cases. Where it is, because of the top design, we will say so and the top will be made of the heavier vinyl.
Warranties outlined here are only applicable for products installed by a professional trim shop or professional upholstery shop. For Convertible Tops, and related products, the manufacturer will void the warranty for any product that is not professionally installed; manufacturer defects are covered by the warranty in such cases. The manufacturer is not responsible for damage due to improper installation.


Parts in this category (Cadillac Coupe deVille (H & E)) fit cars for years: 1986, 1987, 1988 and 1989.
