Ford, 1941
Convertible Top and Convertible Top Parts

1941 Ford Convertible Key Features:
  • Quality: Made to original specs, 100% fit guarantee.
  • Original Configuration: Two piece top, top section and window section integrate upon installation. Molding over rear window and chrome tips supplied.
  • All seams are doubly electronically welded and sewn for added reinforcement. Convertible top fabrics are mildew & mold resistant, and UV treated for color fastness. Plastic windows are DOT rated heavy 40-gauge thick vinyl.
  • Original Fabrics: Haartz Pinpoint Vinyl in black,  Haartz Stayfast Canvas in black, tan and light neutral.
  • Windows: We offer tops with plastic window with horseshoe zipper.and also (as pictured) tops with (double thickness) blank rear curtains (also with horseshoe zipper.) Blank curtain tops are for those with their own rear window frames to be installed into the curtain.  Here is a blank curtain picture:
  •
  • :
  •
  • Wood Top Bows: Your frame has a front (header) and a rear top wood bow. We have been reproducing these in our original shop since 1974 and we retain this capability. These bows are listed and must be custom made..
  • Installation: Professional installation is suggested. A handy and meticulous person may consider DIY installation. This comprises use of a stapling gun and contact cement (as outlined in the manual summary in the link below.) There is no sewing involved. Our manual (listed at 'installation supplies' pertains to cars since 1950 with 'tacking strips' and not wood bows. The manual should be of significant use and so we would include if requested. To locate a professional installer please enter "automobile upholstery shops near me" in your browser search bar.
  • Shop with confidence: 6 year manufacturer warranty.
  • Hydraulic Components: Hydraulic cylinders, motor pumps and hose sets all available and in stock.
  • Preview our Convertible Top Installation Guide

Convertible Tops and Packages

Convertible Tops and Packages

A.) Haartz Stayfast Canvas Convertible Top
with a zippered plastic rear window as original
OR
with a zippered blank rear curtain.

Installation manual (see below) included if requested.
Rear Section:
Color:

As low as:
$999.00
B.) ADD A GLASS TO ANY BLANK CURTAIN
No need for a frame, this glass is built-in!
Available in two sizes 6" x 21" OR 8" x 25"
Choose from Straight or Horseshoe Zipper
Will fold with top without zipping out.
For: 1941 Ford Convertible Top
SIZE
ZIPPER
$419.00
C.) Haartz Pinpoint Vinyl Convertible Top
With Zippered Plastic Window
OR
With Zippered Blank Curtain

Intallation Manual (see below) included if requested.
Rear Section:
Color:

As low as:
$625.00


Wood Bows

Wood Bows

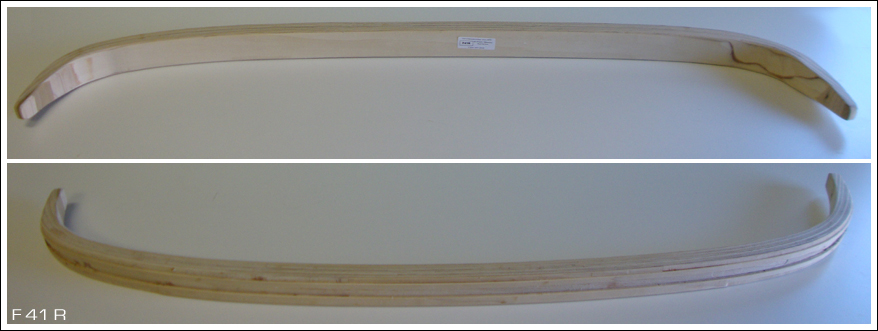

Rear Top Wood Bow. Southern Yellow Poplar.
$585.00
Wood Front Bow. Reproduction of Original,
made of Southern Yellow Poplar.
$905.00


Installation Supplies

Installation Supplies

New Edition!!!
Convertible Top Guys' "How To Remove and Install Classic Two-Part Tops."

This 40-page, extensively illustrated how-to manual walks you through removing and installing any two-part convertible top. The manual applies to almost all American convertibles made before the year 2004, and some foreign cars, too, like Celicas and Saabs. This 8 1/2 x 11 book is designed as both a tutorial for first-time installers and as a step-by-step manual for these convertible tops. Generally, all that is needed and not contained is the "bow height" which is the setting of the rear top frame bow for your convertible. This is available from any top distributor ot can be measured with the old top on the car (as illustrated.)

What skills are required ? (1) The ability to drive staples into bow frame tacking strips (2) The ability to orient fabric sections to the frame and apply with contact cement. (3) A systematic and careful personality ! (There is never any sewing required.)

Note: Very early cars (forties) had wood bows and installers will have to adjust processes for stapling to these bows instead of tacking strips in steel bows as described in manual.

   Details...

$30.95
75" PADS WITH QUARTER SECTIONS. TAN (FOR USE WITH TAN UNDERSIDE TOPS)
$179.00
Standard Black Top Pad Set, includes Quarter Pads,
   Details...

$109.00
Top Pads with Quarters,Black or Tan Stayfast Canvas
   Details...

Color
View Color
$279.00
The Arrow T50ACD electric staple gun drives wire staples with force. It will securely drive 1/4" and 3/8" staples into modern convertible top tack strips, eliminating the need for an air gun for convertible top installation. This stapler comes with the a supply of 1/4" and 3/8" staples.

This stapler also has a brad driving capability, so you can use this stapler again and again for a variety of jobs.

The Arrow T50ACD packs a well-balanced powerful, durable design. Comes complete with 10-foot, heavy-duty cord, a supply of T50 series staples, and a one-year manufacturer's warranty.

The Arrow T50ACD stapler has a spiral driven mechanism for consistent powerful driving power. Additional features include safety trigger lock, comfortable non-slip cushion grip, fastener reload, all-steel working parts, and 14-amp motor.
   Details...

$59.95
Plastic pry tool, great for prying fasteners and seals, pushing seals into retainers, loosening fabric etc
$12.95
Staples and Glue Kit: 500 each of 1/4" & 3/8" Stainless Steel Staples (22 gauge). Plus an 8oz Can of Trimmer Contact Cement with Brush.

The staples in this package are narrow crown
stainless steel staples and will fit
popular air guns. If you wish to use an electric
staple gun then you will need to order our
heavy duty electric gun and its (different) staples.

Please see the "tools and accessories" link
on our home page for electric gun packages.

   Details...

$24.95
Arrow T-50 Stainless Staples, 1/4", 300 Count



$4.95
Arrow T-50 Stainless-Steel Staples 3/8", 300 Count



$4.95
Arrow T-50 Stainless-Steel Staples, 3/8", 1000 Count



$13.95
Arrow T-50 Stainless-Steel Staples, 1/4", 1000 Count
$13.95
Trimmer Contact Cement: 4-Oz. Brush Top Can. Strong, Waterproof, Flexible Bond for Vinyl-coated and Vinyl-laminated Fabrics.
$14.95
Trimmer Contact Cement: 8-Oz. Brush Top Can. Strong, Waterproof, Flexible Bond for Vinyl-coated and Vinyl-laminated Fabrics.
$20.95
Plastic pry tool set, 7-piece kit

Great for prying fasteners and seals, pushing seals into retainers, loosening fabric etc.

$34.95


Hydraulics

Hydraulics

"O" Ring Motor Pump Service Kit For Any American Makes

Our O-Ring kit contains the following items:(1) Drive Pin, (1) 1/8" Chrome Ball, (2) 1/4" Chrome Ball, (2) Pump Port O-Ring, (2) Reservoir O-Ring, (1) Reservoir bolt O-Ring, (1) Reservoir plug, (1)Reservoir Plug O-Ring (metal plug only).

$24.95
Hydraulic System Guide: A well illustrated 10 page, 8 1/2 x 11 guide to the operation, diagnosis, and bleeding of the motor pump and to the motor/pump and cylinder removal and reassembly. Diagnosis includes electrical testing procedures.
$9.95
Set of 4 New Pointed Pump Grommets
$7.95
Top Cylinder Mounting Bolt, One.
With Pin and Bushings
1 5/8" Long, 3/8" Diameter.
$11.95
Top Cylinder Mounting Bolt, One
With Pin and Bushings.
1 1/8" Long, 3/8" in Diameter.
$11.95
Top Cylinder White Nylon Bushing, Each
$2.95
Motor pump reservoir plug, black rubber
$2.39


Cleaning & Protectant

Cleaning & Protectant

A PACKAGE SPECIAL:
A Combination Pack of RAGGTOPP Brand Canvas Cleaner & Protectant.
  • Plus:
  • Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit.
  • The Natural Horsehair Convertible Top Cleaning Brush
$79.95
A Combination Pack of RAGGTOPP Brand Canvas Cleaner & Protectant

About RAGGTOPP products
$39.95
A PACKAGE SPECIAL:
A Combination Pack of the RAGGTOPP Brand Vinyl Cleaner and Protectant.
  • Plus:
  • Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit.
  • The Natural Horsehair Convertible Top Cleaning Brush
$79.95
A Combination Pack of the RAGGTOPP Brand Vinyl Cleaner and Protectant Together

About RAGGTOPP products
$38.95
Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit

Contains:

  • Bottle Window Cleaner
  • Bottle Window Protectant
  • Sponge, Applicator Pad
  • Microfiber Towel

About RAGGTOPP products
$32.95
Natural Horsehair Convertible Top Cleaning Brush

About Natural Horsehair Brush
$14.95


Important Information

Original Factory Color(s): Black, Tan and Light Neutral

This classic Ford featured a complex wood front "header bow" and another wood top bow above the rear window that must usually be replaced. We are pleased to have accurate sturdy reproductions for both these wood forms.

The rear top bow is made of layers of wood bonded in vacuum presses using marine glue. This is much superior for durability and resistance to distortion than the steam bending method.

The front bow is automatically duplicate carved using poplar (laminated sections for stability) kiln dried wood. The tee nuts are supplied. The attachment holes in the bow are bored and counter bored.

The recommended fabric for this top is the Haartz stayfast canvas. The top comes with a zippered rear plastic window, but the rear section can be made "all canvas" if you will be installing a glass rear window of your own.

Pads are available with vinyl wrap. If you wish canvas wrap please inquire.

CONVERTIBLE TOP FABRICS
Almost all manufacturers use Haartz fabrics. They may specify "heaviest weight" or "original replacement" in ways that seem reassuring. But they do not really tell the whole story. Please bear in mind that two things dominate, by far, the quality issue: (a) the manufacturing quality control in the factory that makes the top and (b) the care and thoroughness of the installation. There is a trade-off in weight: heavier is better for resisting tear through, but lighter is better for flexibility and abrasion from within that may arise from movement. Almost all our tops are a flexible medium density (36 oz.) fabric. Heavier is not better in most cases. Where it is, because of the top design, we will say so and the top will be made of the heavier vinyl.
Warranties outlined here are only applicable for products installed by a professional trim shop or professional upholstery shop. For Convertible Tops, and related products, the manufacturer will void the warranty for any product that is not professionally installed; manufacturer defects are covered by the warranty in such cases. The manufacturer is not responsible for damage due to improper installation.
