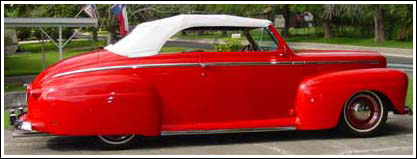

Ford, 1942-48
Convertible Top and Convertible Top Parts

Ford Key Features:
  • Original Configuration: Two-piece top, top section and window section; joined upon installation. Molding over rear window and its chrome tips supplied.
  • Original Factory Material: Haartz Pinpoint Vinyl in black. Haartz Stayfast Canvas in black, tan and light neutral.
  • Windows: Plastic window or 'blank rear curtain' (for those with their own glass window frameworks.)
  • All seams are doubly electronically welded and sewn for added reinforcement. Convertible top fabrics are mildew & mold resistant, and UV treated for color fastness. Plastic windows are DOT rated heavy 40-gauge thick vinyl.
  • Shop With Confidence:  6 year factory warranty.
  • Hydraulic Components: Hydraulic cylinders, motor pumps and hose sets all available and in stock. Quality: Made to original specs, 100% fit guarantee.
Can I install this top myself?

Preview our Convertible Top Installation Guide





Convertible Tops and Packages

Convertible Tops and Packages

A.) Haartz Stayfast Canvas Convertible Top
with Zippered Plastic Rear Window
OR
Zippered Blank Rear Curtain

Installation manual (see below) included if requested.
Rear Section:
Color:

As low as:
$645.00
B.) Haartz Pinpoint Vinyl Convertible Top
with Zippered Plastic Rear Window
OR
with Blank Rear Curtain

Installation manual (see below) included if requested.
Rear Section:
Color:

As low as:
$422.00
Ford convertible tops and parts in this category fit model years: 1942, 1943, 1944, 1945, 1946, 1947 and 1948


Wood Bows

Wood Bows

Wood Bow above Rear Window. Reproduction of Original.
$575.00
Wood Front Bow. Accurate Reproduction of Original,made of Southern Yellow Poplar.
$675.00


Installation Supplies

Installation Supplies

New Edition!!!
Convertible Top Guys' "How To Remove and Install Classic Two-Part Tops."

This 40-page, extensively illustrated how-to manual walks you through removing and installing a two-part convertible top. The manual applies to almost all American convertibles made before the year 2004, and some foreign cars, too, like Celicas and Saabs. This is a bound 8 1/2 x 11 book; designed as both a tutorial for first-time installers and as a step-by-step manual for these convertible tops. Generally, all that is needed and not contained is the "bow height" which is the setting of the rear top frame bow for your convertible. This is available from any top distributor.

What skills are required ? (1) The ability to drive staples into bow frame tacking strips (2) The ability to orient fabric sections to the frame and apply with contact cement. (3) A systematic and careful personality ! (There is never any sewing required.)

Note: Very early cars (forties) had wood bows and installers will have to adjust processes for stapling to these bows instead of tacking strips in steel bows as described in manual.

   Details...

$30.95
75" PADS WITH QUARTER SECTIONS. TAN (FOR USE WITH TAN UNDERSIDE TOPS)
$89.95
Fiberboard Tack Strip, Measures: 1/4" Thick x 5/8" Wide x 62" Long



   Details...

$8.95
Fiberboard Tack Strip, Measures: 1/4" Thick x 13/16" Wide x 62" Long



   Details...

$10.95
Fiberboard Tack Strip, Measures: 1/4" Thick x 3/4" Wide x 62" Long



   Details...

$9.95
Fiberboard Tack Strip: 1/4" Thick x 7/16" Wide x 62" Long



   Details...

$7.95
Fiberboard Tack Strip: 1/4" Thick x 9/16" Wide x 62" Long



   Details...

$8.95
A supply of front tacking strip which can be cut to size. this measures 5/8" WIDE X 3/16" THICK X 6 Foot
   Details...

$11.95
A supply of rear tacking strip which can be cut to size. this measures 1/4" THICK  X 1/2" WIDE X 6 Foot
   Details...

$11.95
Pair of Top Pads.
   Details...

$89.00
Plastic pry tool, great for prying fasteners and seals, pushing seals into retainers, loosening fabric etc
$9.95
Tack Strips: Front measures 5/8" X 3/16" cut to length by the foot
   Details...

$2.00
Tack Strips: Rear measures 1/2" X 1/4" cut to length by the foot
   Details...

$2.00
The Arrow T50ACD electric staple gun drives wire staples with force. It will securely drive 1/4" and 3/8" staples into modern convertible top tack strips, eliminating the need for an air gun for convertible top installation. This stapler comes with the a supply of 1/4" and 3/8" staples.

This stapler also has a brad driving capability, so you can use this stapler again and again for a variety of jobs.

The Arrow T50ACD packs a well-balanced powerful, durable design. Comes complete with 10-foot, heavy-duty cord, a supply of T50 series staples, and a one-year manufacturer's warranty.

The Arrow T50ACD stapler has a spiral driven mechanism for consistent powerful driving power. Additional features include safety trigger lock, comfortable non-slip cushion grip, fastener reload, all-steel working parts, and 14-amp motor.
   Details...

$56.95
Arrow T-50 Stainless Staples, 1/4", 300 Count



$3.49
Arrow T-50 Stainless-Steel Staples 3/8", 300 Count
$3.49
Arrow T-50 Stainless-Steel Staples, 3/8", 1000 Count
$9.95
Arrow T-50 Stainless-Steel Staples, 1/4", 1000 Count
$9.49
Trimmer Contact Cement: 4-Oz. Brush Top Can. Strong, Waterproof, Flexible Bond for Vinyl-coated and Vinyl-laminated Fabrics.
$8.95
Trimmer Contact Cement: 8-Oz. Brush Top Can. Strong, Waterproof, Flexible Bond for Vinyl-coated and Vinyl-laminated Fabrics.
$12.95
Plastic pry tool set, 7-piece kit

Great for prying fasteners and seals, pushing seals into retainers, loosening fabric etc.

$26.95


Hydraulics

Hydraulics

"O" Ring Motor Pump Service Kit For Any American Makes

Our O-Ring kit contains the following items:(1) Drive Pin, (1) 1/8" Chrome Ball, (2) 1/4" Chrome Ball, (2) Pump Port O-Ring, (2) Reservoir O-Ring, (1) Reservoir bolt O-Ring, (1) Reservoir plug, (1)Reservoir Plug O-Ring (metal plug only).

$24.95
1946-1948 Ford/Mercury Convertible Top Cylinder, Pair



$269.95
1946-48 Ford/Mercury Convertible Top Hydraulic Cylinder, Each
$139.95
Chrome universal 6 volt toggle switch with wiring. Replaces original switch and wiring to connect directly with 6 Volt Motor Pump with no additional relays required. All wires are tagged for easy installation. Includes crimp connectors to attach wiring to motor and nylon tie straps to hide wiring.
$85.95
Hydraulic System Guide: A well illustrated 10 page, 8 1/2 x 11 guide to the operation, diagnosis, and bleeding of the motor pump and to the motor/pump and cylinder removal and reassembly. Diagnosis includes electrical testing procedures.
$14.95
Set of 4 New Pointed Pump Grommets
$7.95
Top Cylinder Mounting Bolt, One.
With Pin and Bushings
1 5/8" Long, 3/8" Diameter.
$11.95
Top Cylinder Mounting Bolt, One
With Pin and Bushings.
1 1/8" Long, 3/8" in Diameter.
$11.95
Top Cylinder White Nylon Bushing, Each
$2.95
Motor pump reservoir plug, black rubber
$1.95


Cleaning & Protectant

Cleaning & Protectant

A PACKAGE SPECIAL:
A Combination Pack of RAGGTOPP Brand Canvas Cleaner & Protectant.
  • Plus:
  • Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit.
  • The Natural Horsehair Convertible Top Cleaning Brush
$79.95
A Combination Pack of RAGGTOPP Brand Canvas Cleaner & Protectant

About RAGGTOPP products
$38.95
A PACKAGE SPECIAL:
A Combination Pack of the RAGGTOPP Brand Vinyl Cleaner and Protectant.
  • Plus:
  • Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit.
  • The Natural Horsehair Convertible Top Cleaning Brush
$79.95
A Combination Pack of the RAGGTOPP Brand Vinyl Cleaner and Protectant Together

About RAGGTOPP products
$34.95
Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit

Contains:

  • Bottle Window Cleaner
  • Bottle Window Protectant
  • Sponge, Applicator Pad
  • Microfiber Towel

About RAGGTOPP products
$30.95
Natural Horsehair Convertible Top Cleaning Brush

About Natural Horsehair Brush
$14.95


Important Information

Original Factory Color(s): Black, Tan and Light Neutral

These Fords were originally called super deluxe convertible coupes and also the very similar sportsman convertible coupe. The models take the same convertible tops. Restorers refer to them as convertible coupes.

The original topping was canvas and replacements are generally made in modern Haartz stayfast canvas. Colors may be views opposite the listed tops (see "view colors"). A budget version of the top can be ordered in haartz pinpoint vinyl.

The top is made, as original, in two parts which are joined together at the rear top bow during installation. These are the main top and the rear window section, called the curtain. You may order a top with a curtain with a plastic sewn in window. Most restorers opt for a "blank" curtain so that they may install their own window frame.

These classic Fords have wooden forms (called "top bows") that attach to the top frame, one in front and one above the rear window. They must usually be replaced. We are pleased to have accurate sturdy reproductions of these "wood top bows" available. Please inquire.

The bow above the rear window is made in much more modern fashion than the original steam bending process. Our bows are laminated in vacuum presses with the layers of wood bonded with marine glue for permanence and much greater resistance to shape change. The front bow is an automatically carved duplicate of the original, made from blanks of laminated solid kiln dried poplar timber. The holes are bored and counterbored for the attachment tee nuts which are supplied.

CONVERTIBLE TOP FABRICS
Almost all manufacturers use Haartz fabrics. They may specify "heaviest weight" or "original replacement" in ways that seem reassuring. But they do not really tell the whole story. Please bear in mind that two things dominate, by far, the quality issue: (a) the manufacturing quality control in the factory that makes the top and (b) the care and thoroughness of the installation. There is a trade-off in weight: heavier is better for resisting tear through, but lighter is better for flexibility and abrasion from within that may arise from movement. Almost all our tops are a flexible medium density (36 oz.) fabric. Heavier is not better in most cases. Where it is, because of the top design, we will say so and the top will be made of the heavier vinyl.


Parts in this category (Ford) fit cars for years: 1942, 1943, 1944, 1945, 1946, 1947 and 1948.
