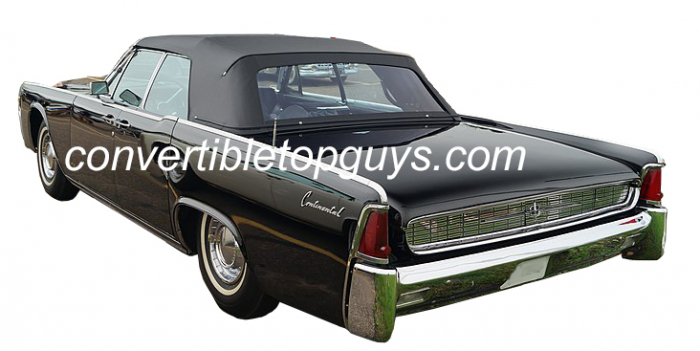

Lincoln Continental, 1961-63
Convertible Top and Convertible Top Parts

Lincoln Continental Convertible Top Key Features:
  • Quality: Made to original specs, 100% fit guarantee.
  • Original Configuration: Top with plastic rear window. Molding for over rear window with chrome tips included. This is a classic two part top. Installation procedures covered fully in our two part top manual.
  • All seams are doubly electronically welded and sewn for added reinforcement. Convertible top fabrics are mildew & mold resistant, and UV treated for color fastness. Plastic windows are DOT rated heavy 40-gauge thick vinyl.
  • Original Fabrics: Haartz Pinpoint Vinyl in black, Ford blue (a pale blue now discontinued) and Ford white. Haartz Stayfast Canvas in black..
  • Tack Strips: These are rivetted into the bow channels to receive staples. Channel dimensions may vary. usually the plasti strips work. However you should measure channel width and depth and specify other strips if necessary.
  • Installation: Professional installation is suggested. A handy and meticulous person may consider DIY installation. This comprises use of a stapling gun and contact cement (as described in the two part top manual summary in the link below.) There is no sewing involved. To locate a professional installer please enter "automobile upholstery shops near me" in your browser search bar.
  • Shop with confidence: 3 year manufacturer warranty.
  • Hydraulic Components: Hydraulic cylinders, motor pumps and hose sets all available and in stock.




Preview our Convertible Top Installation Guide

Convertible Tops and Packages

Convertible Tops and Packages

A.) Lincoln Continental (4 door) Convertible Top
with plastic rear window
Haartz Stayfast Canvas OR Haartz Pinpoint Vinyl
17 inch opening or 19 inch opening between 3 & 4 bow top


Fabric & Color:
Opening :

As low as:
$571.00
B.) A Package Special:
Lincoln Continental (4 door) Convertible Top
with plastic rear window
Haartz Stayfast Canvas OR Haartz Pinpoint Vinyl
17 inch opening or 19 inch opening between 3 & 4 bow tops


PLUS
Pair of top hold down cables
Tack strips for header and rear top bows
Can trimmer contact cement with brush
Top pads
Two Part Top Manual (see below)


Fabric & Color:
Opening:

As low as:
$615.00
C.) ADD A GLASS TO ANY BLANK CURTAIN
No need for a frame, this glass is built-in!
Available in two sizes 6" x 21" OR 8" x 25"
Choose from Straight or Horseshoe Zipper
Will fold with top without zipping out.
For: 1961-63 Lincoln Continental Convertible Top
SIZE
ZIPPER
$419.00
Lincoln Continental convertible tops and parts in this category fit model years: 1961, 1962 and 1963


Installation Supplies

Installation Supplies

New Edition!!!
Convertible Top Guys' "How To Remove and Install Classic Two-Part Tops."

This 40-page, extensively illustrated how-to manual walks you through removing and installing any two-part convertible top. The manual applies to almost all American convertibles made before the year 2004, and some foreign cars, too, like Celicas and Saabs. This 8 1/2 x 11 book is designed as both a tutorial for first-time installers and as a step-by-step manual for these convertible tops. Generally, all that is needed and not contained is the "bow height" which is the setting of the rear top frame bow for your convertible. This is available from any top distributor ot can be measured with the old top on the car (as illustrated.)

What skills are required ? (1) The ability to drive staples into bow frame tacking strips (2) The ability to orient fabric sections to the frame and apply with contact cement. (3) A systematic and careful personality ! (There is never any sewing required.)

Note: Very early cars (forties) had wood bows and installers will have to adjust processes for stapling to these bows instead of tacking strips in steel bows as described in manual.

   Details...

$30.95
Front and Rear Top Frame Bow Tack Strips
(Tacking strips for most top frames. Some may vary, especially pre-60s cars.)

Dimensions: 5/8" X 3/16" and 1/2" X 1/4" (in 6 foot lengths.)
Note: These usually apply. In certain convertible top frames (especially pre-sixties) the cross sections of the header and rear top bows vary. You can measure the top bow channel cross sections and let us know if yours vary from the usual plastic ones. In that case include your tack strip selection in checkout message.
   Details...

$23.95
Top Pads with Quarters,Black or Tan Stayfast Canvas
   Details...

Color
View Color
$279.00
Plastic pry tool, great for prying fasteners and seals, pushing seals into retainers, loosening fabric etc
$12.95
Regular 65" Convertible Top Pads.
   Details...

$44.00
Universal Domestic, Side Tension Hold Down Cables, Pair (with springs)

American made in the USA (beware of inferior made imports)
   Details...

$31.00
Fiberboard Tack Strip, Measures: 1/4" Thick x 13/16" Wide x 52" Long, Expect 2 x 26" sections.
   Details...

$10.95
Fiberboard Tack Strip, Measures: 1/4" Thick x 3/4" Wide x 52" Long, expect 2 x 26" sections.
   Details...

$9.95
Fiberboard Tack Strip, Measures: 1/4" Thick x 5/8" Wide. Expect 2 x 26" sections.
   Details...

$9.49
Fiberboard Tack Strip: 1/4" Thick x 7/16" Wide. Long, Expect 2 x 26" sections.
   Details...

$8.95
Fiberboard Tack Strip: 1/4" Thick x 9/16" Wide x 52" Long, expect 2 x 26" sections.
   Details...

$10.49
Staples and Glue Kit: 500 each of 1/4" & 3/8" Stainless Steel Staples (22 gauge). Plus an 8oz Can of Trimmer Contact Cement with Brush.

The staples in this package are narrow crown
stainless steel staples and will fit
popular air guns. If you wish to use an electric
staple gun then you will need to order our
heavy duty electric gun and its (different) staples.

Please see the "tools and accessories" link
on our home page for electric gun packages.

   Details...

$24.95
Arrow T-50 Stainless Staples, 1/4", 300 Count



$4.95
Arrow T-50 Stainless-Steel Staples 3/8", 300 Count



$4.95
Arrow T-50 Stainless-Steel Staples, 3/8", 1000 Count



$13.95
Arrow T-50 Stainless-Steel Staples, 1/4", 1000 Count
$13.95
Trimmer Contact Cement: 4-Oz. Brush Top Can. Strong, Waterproof, Flexible Bond for Vinyl-coated and Vinyl-laminated Fabrics.
$14.95
Trimmer Contact Cement: 8-Oz. Brush Top Can. Strong, Waterproof, Flexible Bond for Vinyl-coated and Vinyl-laminated Fabrics.
$20.95
Plastic pry tool set, 7-piece kit

Great for prying fasteners and seals, pushing seals into retainers, loosening fabric etc.

$34.95


Hydraulics

Hydraulics

"O" Ring Motor Pump Service Kit For Any American Makes

Our O-Ring kit contains the following items:(1) Drive Pin, (1) 1/8" Chrome Ball, (2) 1/4" Chrome Ball, (2) Pump Port O-Ring, (2) Reservoir O-Ring, (1) Reservoir bolt O-Ring, (1) Reservoir plug, (1)Reservoir Plug O-Ring (metal plug only).

$24.95

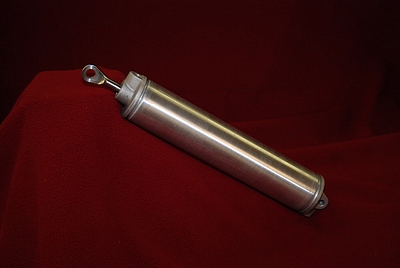

1961-63 Lincoln Convertible Top Hydraulic Cylinder, Each
$159.95

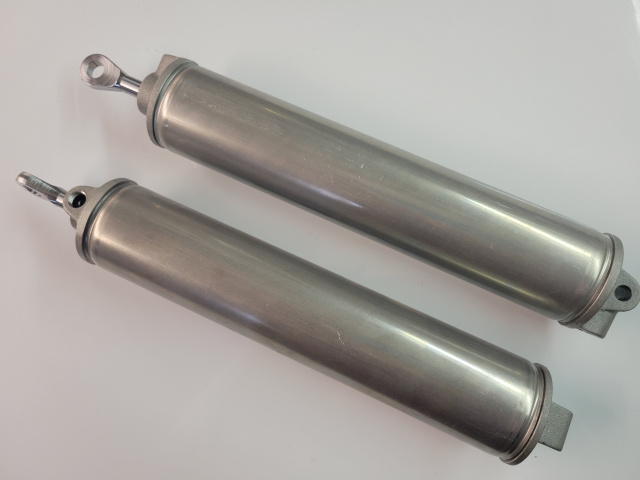

1961-63 Lincoln Convertible Top Hydraulic Cylinders, Pair
$319.95
1961-63 Lincoln Convertible Top Hydraulic Hose Set
$249.95

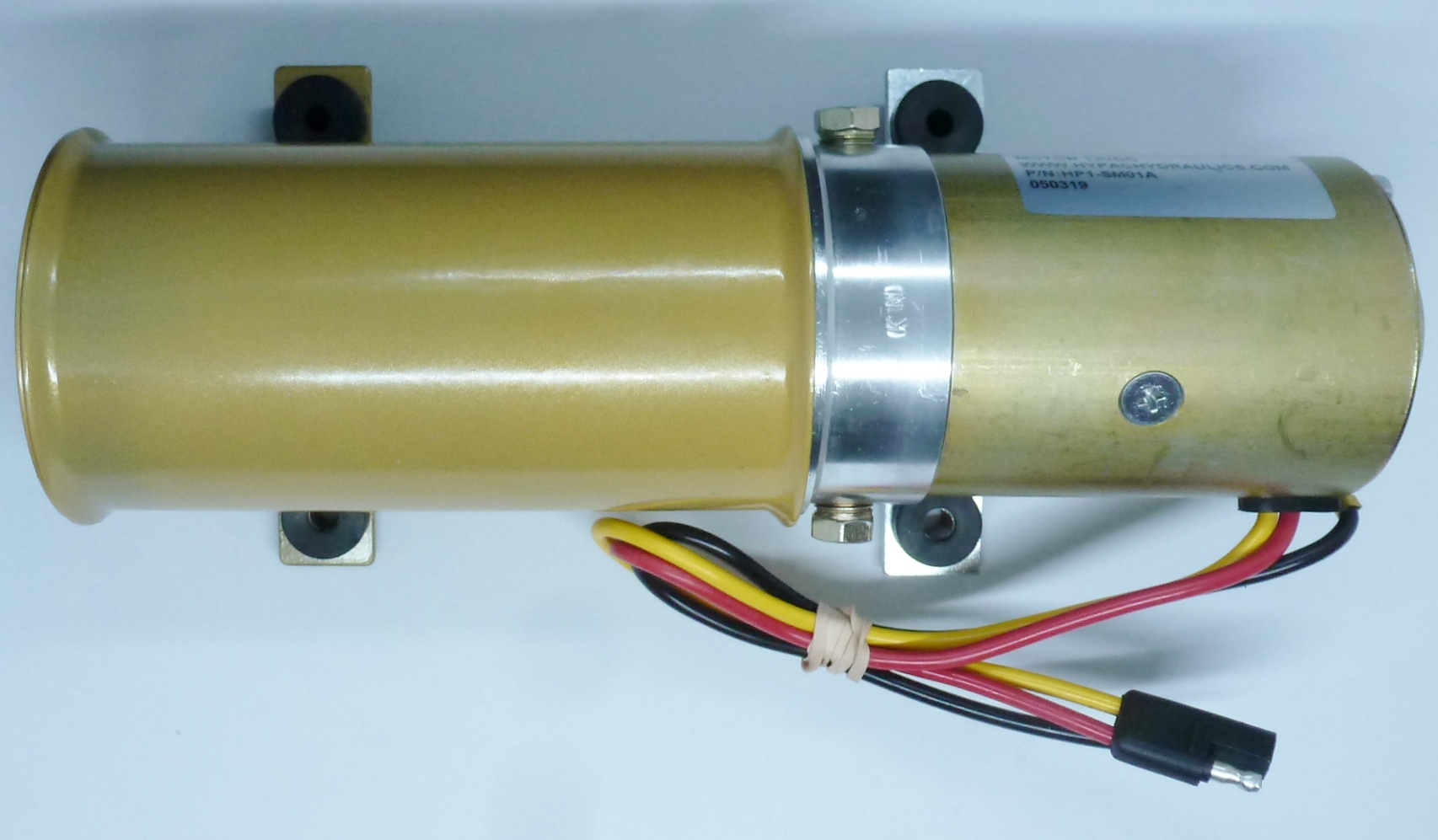

1961-63 Lincoln Convertible Top Hydraulic Motor Pump
$399.95
Convertible Top and Rear Deck Solenoid Tab,Late 1963-1965 Continental



$325.00

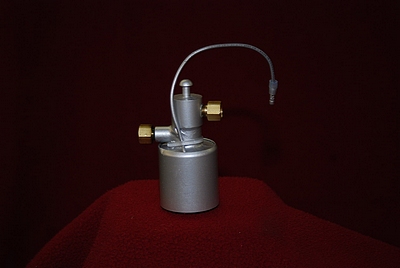

Convertible Top and Rear Deck Solenoid Valve

Solenoid 1961 to early-1963 Continental

$279.95

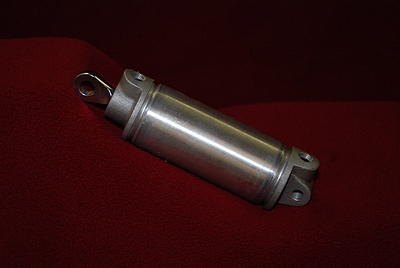

Deck Lid Cylinder, 1961-1963 Lincoln Continental



$149.95
FLAT GROMMET FEET FOR EARLY MOTOR PUMP, 4 PIECES
$14.95
Hydraulic System Guide: A well illustrated 10 page, 8 1/2 x 11 guide to the operation, diagnosis, and bleeding of the motor pump and to the motor/pump and cylinder removal and reassembly. Diagnosis includes electrical testing procedures.
$9.95
Set of 4 New Pointed Pump Grommets
$7.95
Top Cylinder Mounting Bolt, One.
With Pin and Bushings
1 5/8" Long, 3/8" Diameter.
$11.95
Top Cylinder Mounting Bolt, One
With Pin and Bushings.
1 1/8" Long, 3/8" in Diameter.
$11.95
Top Cylinder White Nylon Bushing, Each
$2.95
Motor pump reservoir plug, black rubber
$2.39


Weatherstripping

Weatherstripping

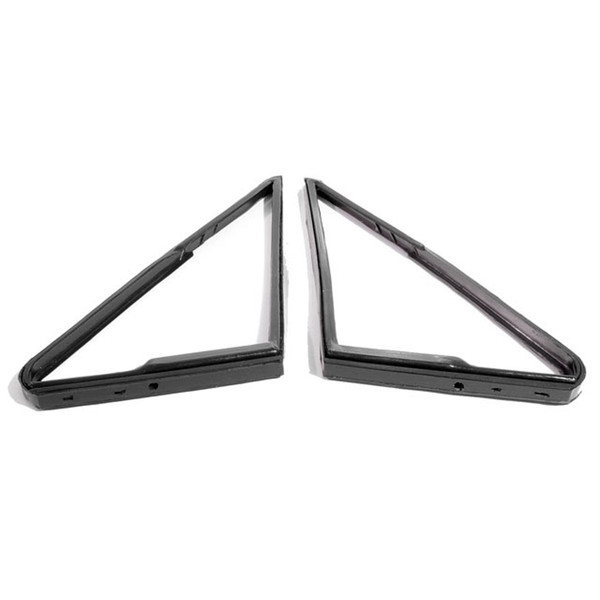

Weatherstripping Seals: Front Vent Window Seals. For 2-door convertibles. Made with Vertical Division Bar. Pair R&L
$159.95

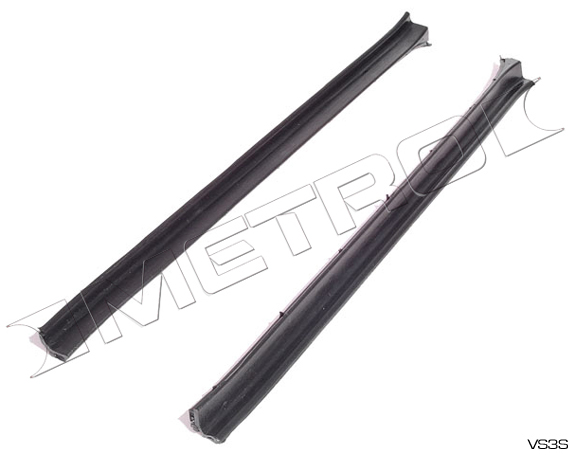

Weatherstripping Seals: Rear Roll-Up Window Seals, for 4-Door Convertibles. 16-3/8" long. Pair R&L
$49.95

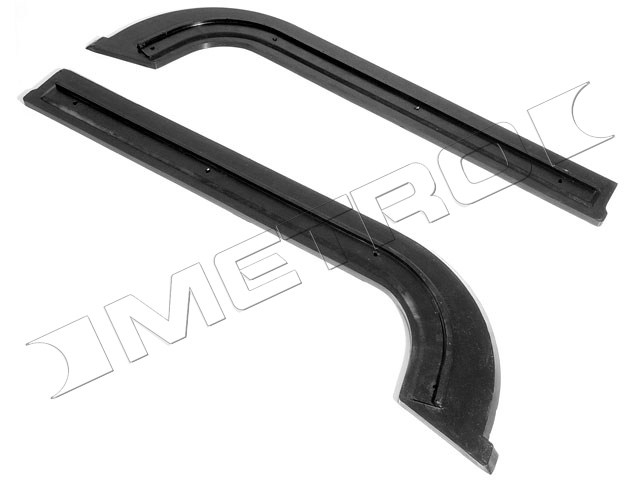

Weatherstripping Seals: Rear Top Seals for Convertibles. Made with steel washers molded in holes instead of a steel core that would rust out. 22-1/2" approximate overall length. Pair R&L
$224.95


Cleaning & Protectant

Cleaning & Protectant

A PACKAGE SPECIAL:
A Combination Pack of RAGGTOPP Brand Canvas Cleaner & Protectant.
  • Plus:
  • Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit.
  • The Natural Horsehair Convertible Top Cleaning Brush
$79.95
A Combination Pack of RAGGTOPP Brand Canvas Cleaner & Protectant

About RAGGTOPP products
$39.95
A PACKAGE SPECIAL:
A Combination Pack of the RAGGTOPP Brand Vinyl Cleaner and Protectant.
  • Plus:
  • Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit.
  • The Natural Horsehair Convertible Top Cleaning Brush
$79.95
A Combination Pack of the RAGGTOPP Brand Vinyl Cleaner and Protectant Together

About RAGGTOPP products
$38.95
Raggtopp Convertible Top Plastic Window Cleaner and Protectant Kit

Contains:

  • Bottle Window Cleaner
  • Bottle Window Protectant
  • Sponge, Applicator Pad
  • Microfiber Towel

About RAGGTOPP products
$32.95
Natural Horsehair Convertible Top Cleaning Brush

About Natural Horsehair Brush
$14.95


Top Switch, Relays, Etc.

Top Switch, Relays, Etc.

Top Switch
Activates Raising/Lowering.
Heavy Duty: Rated for 50 amps.
Mount in any under dash hole.
$34.95




Important Information

Original Factory Color(s): Black, Tan and Light Neutral

Original Patterns:
Our manufacturer is an 'old line' company which has an original 1961-63 Continental top from which it stored its patterns. Computer directed cutting of new fabric and state of the art assembly methods assure accurate reproduction of the original top design.

Fabrics:
The original fabric was pinpoint vinyl. We offer Haartz pinpoint vinyl tops as well as Haartz Stayfast canvas replacements. Information on the fabrics can be seen at the "Help" link at the top of this page.

Installation:
This is a classic two part top: the main top and the rear window sections are integrated during the installation process.

Installation involves stapling (using stainless steel staples) and gluing. There is no sewing. If you are confident using an air driven staple gun then you are a good candidate for do-it-yourself installation. You can read a summary of our 'two part top' manual via the blue link at the bottom of this page.

Tack Strips:
Tacking strips are embedded in the header and rear top frame bows. They receive the staples. We offer replacement strips. (If your lower--below the back window--tacking belts need replacement please inquire.)

Hold down cables:
Cables are threaded through the side hems of the top and hold the top to the framework. They are not visible after installation. New cables are recommended with each new top.

Pads:
Pads are installed under the top. They 'build out' the top along the sides.

Hydraulics:

We now stock hydraulic cylinders, motor-pumps, and hoses for your convertible tops. All are made to OEM specifications. Each can be ordered separately; however, when ordering hydraulic cylinders we recommend replacing both. The chances are that both hydraulic cylinders were manufactured at the same time: if one is on its way out the other may follow. If the top is raised and one hydraulic cylinder is working harder than the other the result over time can lead to a slightly bent convertible top frame. The replacement of both hydraulic cylinders will ensure that the top raises and lowers symmetrically.

Systems for this car take Automatic Transmission Fluid (ATF) and have a 1 year warranty when used with this fluid. Brake fluid should not be used as it voids the warranty. We also offer an installation manual when ordered.

The 12 volt motor-pumps include a mounting bracket with rubber grommets to reduce vibration.

CONVERTIBLE TOP FABRICS
Almost all manufacturers use Haartz fabrics. They may specify "heaviest weight" or "original replacement" in ways that seem reassuring. But they do not really tell the whole story. Please bear in mind that two things dominate, by far, the quality issue: (a) the manufacturing quality control in the factory that makes the top and (b) the care and thoroughness of the installation. There is a trade-off in weight: heavier is better for resisting tear through, but lighter is better for flexibility and abrasion from within that may arise from movement. Almost all our tops are a flexible medium density (36 oz.) fabric. Heavier is not better in most cases. Where it is, because of the top design, we will say so and the top will be made of the heavier vinyl.
Warranties outlined here are only applicable for products installed by a professional trim shop or professional upholstery shop. For Convertible Tops, and related products, the manufacturer will void the warranty for any product that is not professionally installed; manufacturer defects are covered by the warranty in such cases. The manufacturer is not responsible for damage due to improper installation.


Parts in this category (Lincoln Continental) fit cars for years: 1961, 1962 and 1963.
